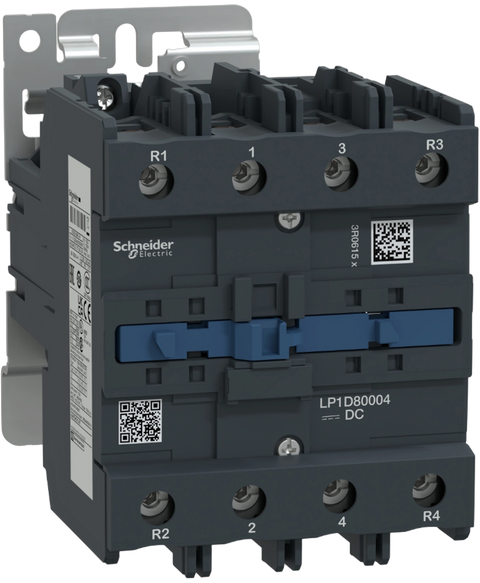

Schneider Electric LP1D80004BD
TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 125 A - 24 V DC coil
This Schneider Electric LP1D80004BD is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805527366.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$911.48
(inc. GST)
In Stock
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LP1D |
| Contactor application | Resistive load |
| Utilisation category | AC-1 |
| Poles description | 4P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz | Power circuit: <= 300 V DC |
| [Ie] rated operational current | 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit |
| [Uc] control circuit voltage | 24 V DC |
| Compatibility code | LP1D |
| Pole contact composition | 4 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 125 A (at 60 °C) for power circuit |
| Irms rated making capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 135 A 40 °C - 10 min for power circuit | 320 A 40 °C - 1 min for power circuit | 640 A 40 °C - 10 s for power circuit | 990 A 40 °C - 1 s for power circuit |
| Associated fuse rating | 200 A gG at <= 690 V coordination type 1 for power circuit | 160 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 0.8 mOhm - Ith 125 A 50 Hz for power circuit |
| Power dissipation per pole | 12.5 W AC-1 | 5.1 W AC-3 | 5.1 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified | Power circuit: 600 V UL certified | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 4 Mcycles |
| Electrical durability | 0.8 Mcycles 125 A AC-1 at Ue <= 440 V |
| Control circuit type | DC DC standard |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.1...0.3 Uc (-40…70 °C):drop-out DC | 0.85...1.1 Uc (-40…55 °C):operational DC | 1...1.1 Uc (55…70 °C):operational DC |
| Inrush power in W | 22 W (at 20 °C) |
| Hold-in power consumption in W | 22 W at 20 °C |
| Operating time | 6...20 ms opening | 20...35 ms closing |
| Time constant | 75 ms |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid | Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end | Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end | Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end | Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end | Power circuit: connector 1 4…50 mm² - cable stiffness: solid | Power circuit: connector 2 4…25 mm² - cable stiffness: solid | Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end |
| Tightening torque | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm | Power circuit: 12 N.m - on connector hexagonal screw head 4 mm | Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 |
| Mounting support | Rail | Plate |
| Standards | CSA C22.2 No 14 | EN 60947-4-1 | EN 60947-5-1 | IEC 60947-4-1 | IEC 60947-5-1 | UL 60947-4-1 |
| Product certifications | BV | CCC | CSA | DNV | EAC | GL | LROS (Lloyds register of shipping) | UL | UKCA |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Permissible ambient air temperature around the device | -40…60 °C | 60…70 °C with derating |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) | Vibrations contactor closed (3 Gn, 5...300 Hz) | Shocks contactor open (8 Gn for 11 ms) | Shocks contactor closed (10 Gn for 11 ms) |
| Height | 127 mm |
| Width | 96 mm |
| Depth | 181 mm |
| Net weight | 2.685 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.000 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 22.500 cm |
| Package 1 Weight | 2.675 kg |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.656 kg |
