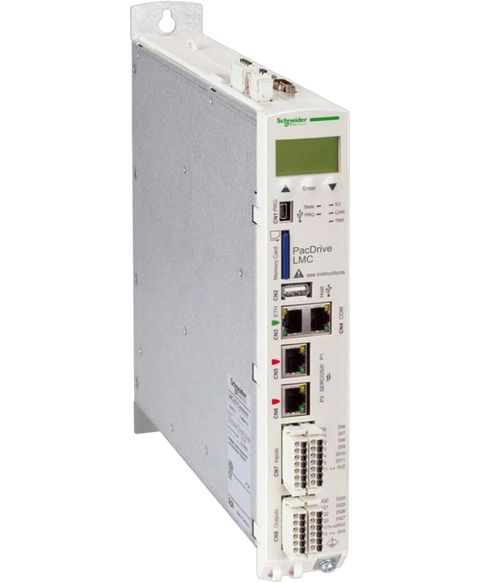

Schneider Electric LMC201CAA10000
The LMC201CAA10000 from Schneider Electric functions as a motion controller with a configuration that supports up to eight axes. It features digital inputs and outputs and accommodates various programming languages, making it adaptable for different automation tasks.
This Schneider Electric LMC201CAA10000 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Motion controllers range and is referenced internally as PartLogic SKU PL26805756019.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | Other |
| Part Number | LMC201CAA10000 |
| EAN | 3606485305554 |
| Weight | 1.38 lbs (0.62 kg) |
| Number of Axes | 8 |
| Discrete Input Number | 8 digital inputs conforming to IEC 61131-2 Type 1 |
| Touch Probe Input | 4 inputs conforming to IEC 61131-2 Type 1 |
| Discrete Input Voltage | 15-30 V DC |
| Discrete Input Current | 4 mA for digital input |
| Discrete Output Number | 8 digital outputs |
| Discrete Output Current | 500 mA for digital output |
| Power Supply Voltage | 24 V DC |
| Power Consumption | 30 W |
| Memory Type | 512 MB RAM DDR2, 128 kB NVRAM |
| Programming Languages | LD (ladder), SFC (sequential function chart), ST (structured text), CFC (continuous function chart), FBD (function block diagram), IL (instruction list) |
| Integrated Connection Types | 2 Ethernet ports (RJ45 for Sercos and Ethernet 10/100BASE-T, FTP/HTTP), 1 Ethernet port (RJ45 for master encoder), 1 serial link (RJ45 for RS232/RS485), 1 CAN port (SUB-D 9 for CANopen), 1 USB port (USB type A) |
| IP Degree of Protection | IP20 conforming to EN/IEC 60529 |
| Brand | Schneider Electric |
