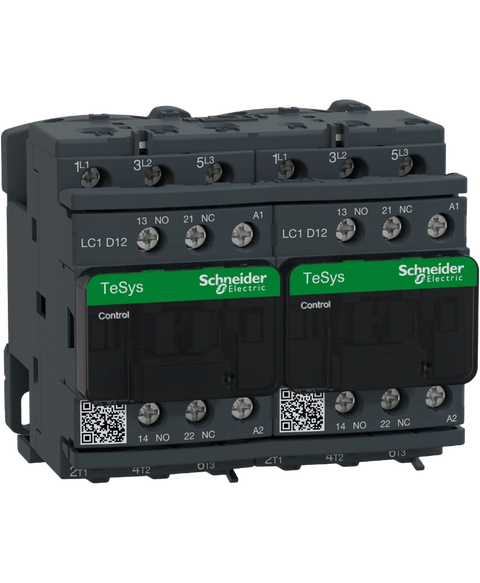

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC2D12F7
TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 110 V AC coil
This Schneider Electric LC2D12F7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805462630.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$209.78
(inc. GST)
In Stock
| Range | TeSys | TeSys Deca |
| Product name | TeSys D | TeSys Deca |
| Product or component type | Reversing contactor |
| Device short name | LC2D |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-3 | AC-1 | AC-3e |
| Device presentation | Preassembled with reversing power busbar |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz | Power circuit: <= 300 V DC |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Motor power kW | 3 kW at 220...230 V AC 50 Hz | 5.5 kW at 380...400 V AC 50 Hz | 5.5 kW at 415 V AC 50 Hz | 5.5 kW at 440 V AC 50 Hz | 7.5 kW at 500 V AC 50 Hz | 7.5 kW at 660...690 V AC 50 Hz |
| Motor power hp | 1 hp at 115 V AC 60 Hz for 1 phase motors | 2 hp at 230/240 V AC 60 Hz for 1 phase motors | 3 hp at 200/208 V AC 60 Hz for 3 phases motors | 3 hp at 230/240 V AC 60 Hz for 3 phases motors | 7.5 hp at 460/480 V AC 60 Hz for 3 phases motors | 10 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit | 25 A (at 60 °C) for power circuit |
| Irms rated making capacity | 250 A at 440 V for power circuit conforming to IEC 60947 | 140 A AC for signalling circuit conforming to IEC 60947-5-1 | 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 30 A 40 °C - 10 min for power circuit | 61 A 40 °C - 1 min for power circuit | 105 A 40 °C - 10 s for power circuit | 210 A 40 °C - 1 s for power circuit | 100 A - 1 s for signalling circuit | 120 A - 500 ms for signalling circuit | 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 | 40 A gG at <= 690 V coordination type 1 for power circuit | 25 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 | Power circuit: 600 V CSA certified | Power circuit: 600 V UL certified | Signalling circuit: 690 V conforming to IEC 60947-1 | Signalling circuit: 600 V CSA certified | Signalling circuit: 600 V UL certified |
| Electrical durability | 2 Mcycles 12 A AC-3 at Ue <= 440 V | 0.8 Mcycles 25 A AC-1 at Ue <= 440 V | 2 Mcycles 12 A AC-3e at Ue <= 440 V |
| Power dissipation per pole | 1.56 W AC-1 | 0.36 W AC-3 | 0.36 W AC-3e |
| Front cover | With |
| Interlocking type | Mechanical |
| Mounting support | Rail | Plate |
| Standards | CSA C22.2 No 14 | EN 60947-4-1 | EN 60947-5-1 | IEC 60947-4-1 | IEC 60947-5-1 | UL 60335-2-40:Annex JJ | IEC 60335-1 |
| Product certifications | DNV | CSA | CCC | UL | GL | LROS (Lloyds register of shipping) | BV | RINA | GOST | UKCA |
| Connections - terminals | Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Power circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Power circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid | Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid |
| Tightening torque | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Operating time | 12...22 ms closing | 4...19 ms opening |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 15 Mcycles |
| Maximum operating rate | 3600 cyc/h 60 °C |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz | 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz | 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz | 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) | 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) | 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 | type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact | 1.5 ms on energisation between NC and NO contact |
| Insulation resistance | > 10 MOhm for signalling circuit |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 | conforming to IEC 60947-1 Annex Q category D |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Pollution degree | 3 |
| Ambient air temperature for operation | -40…60 °C | 60…70 °C with derating |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz | Vibrations contactor closed: 4 Gn, 5...300 Hz | Shocks contactor open: 10 Gn for 11 ms | Shocks contactor closed: 15 Gn for 11 ms |
| Height | 77 mm |
| Width | 90 mm |
| Depth | 86 mm |
| Net weight | 0.697 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.300 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 14.000 cm |
| Package 1 Weight | 806.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.210 kg |
