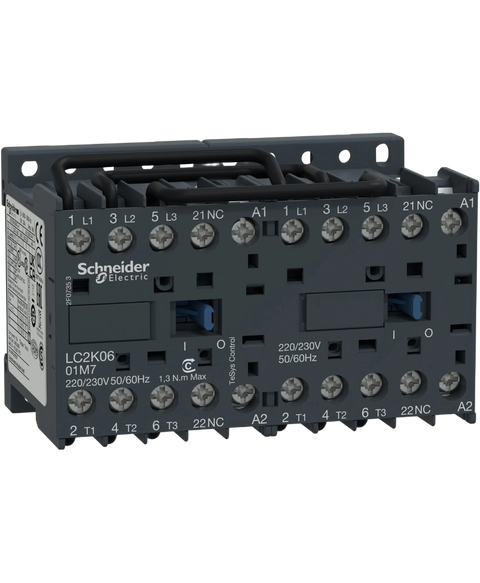

Schneider Electric LC2-K0901M7
Schneider LC2K0901M7 reversing contactor, 3P, 9A, 230VAC coil.
This Schneider Electric LC2-K0901M7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26911617671.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$134.65
(inc. GST)
In Stock
| Range | TeSys |
| Product name | TeSys K |
| Product or component type | Reversing contactor |
| Device short name | LC2K |
| Device application | Control |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-3 | AC-3e | AC-4 | AC-1 |
| Device presentation | Preassembled with reversing power busbar |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz | Signalling circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz | 4 kW at 380...415 V AC 50/60 Hz | 4 kW at 440/690 V AC 50/60 Hz |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220...230 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 20 A (at 60 °C) for power circuit | 10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to IEC 60947 | 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity | 110 A at 220...230 V conforming to IEC 60947 | 110 A at 380...400 V conforming to IEC 60947 | 110 A at 415 V conforming to IEC 60947 | 110 A at 440 V conforming to IEC 60947 | 80 A at 500 V conforming to IEC 60947 | 70 A at 660...690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 90 A 50 °C - 1 s for power circuit | 85 A 50 °C - 5 s for power circuit | 80 A 50 °C - 10 s for power circuit | 60 A 50 °C - 30 s for power circuit | 45 A 50 °C - 1 min for power circuit | 40 A 50 °C - 3 min for power circuit | 20 A 50 °C - >= 15 min for power circuit | 80 A - 1 s for signalling circuit | 90 A - 500 ms for signalling circuit | 110 A - 100 ms for signalling circuit |
| Associated fuse rating | 25 A gG at <= 440 V for power circuit | 25 A aM for power circuit | 10 A gG for signalling circuit conforming to IEC 60947 | 10 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| [Ui] rated insulation voltage | Power circuit: 600 V conforming to UL 508 | Power circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-5-1 | Signalling circuit: 600 V conforming to UL 508 | Power circuit: 600 V conforming to CSA C22.2 No 14 | Signalling circuit: 600 V conforming to CSA C22.2 No 14 |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V | 1.3 Mcycles 9 A AC-3e at Ue <= 440 V | 0.16 Mcycles 20 A AC-1 at Ue <= 690 V | 0.02 Mcycles 54 A AC-4 at Ue <= 440 V |
| Interlocking type | Mechanical |
| Mounting support | Plate | Rail |
| Standards | EN/IEC 60947-4-1 | GB/T 14048.4 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | JIS C8201-4-1 |
| Product certifications | CB Scheme | CCC | UL | CSA | EAC | CE | UKCA |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid | Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 1.5…4 mm²solid | Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| Tightening torque | 0.8…1.3 N.m - on screw clamp terminals Philips No 2 | 0.8…1.3 N.m - on screw clamp terminals flat Ø 6 mm | 0.8…1.3 N.m - on screw clamp terminals pozidriv No 2 |
| Operating time | 10...20 ms coil energisation and NO closing | 10...20 ms coil de-energisation and NO opening |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 5 Mcycles |
| Maximum operating rate | 3600 cyc/h |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at <50 °C) | Drop-out: 0.2...0.75 Uc (at <50 °C) |
| Inrush power in VA | 30 VA (at 20 °C) |
| Hold-in power consumption in VA | 4.5 VA (at 20 °C) |
| Heat dissipation | 1.3 W |
| Auxiliary contacts type | type instantaneous 1 NC |
| Signalling circuit frequency | <= 400 Hz |
| Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit |
| Non overlap distance | 0.5 mm |
| Insulation resistance | > 10 MOhm for signalling circuit |
| IP degree of protection | IP20 conforming to VDE 0106 |
| Protective treatment | TC conforming to IEC 60068 | TC conforming to DIN 50016 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -50…80 °C |
| Operating altitude | 2000 m without derating |
| Flame retardance | V1 conforming to UL 94 | Requirement 2 conforming to NF F 16-101 | Requirement 2 conforming to NF F 16-102 |
| Mechanical robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 58 mm |
| Width | 90 mm |
| Depth | 57 mm |
| Net weight | 0.39 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 9.200 cm |
| Package 1 Length | 6.000 cm |
| Package 1 Weight | 364.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.407 kg |
