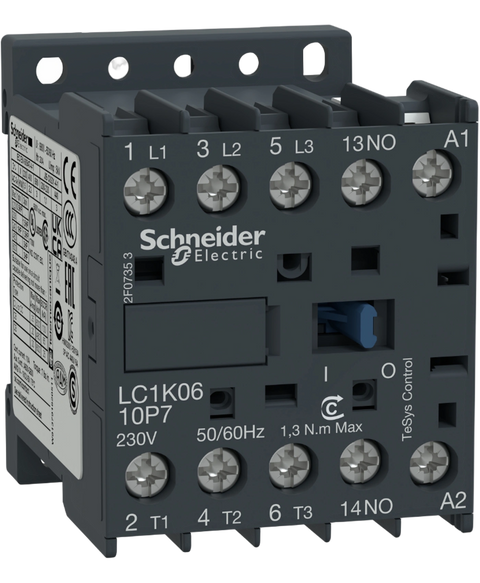

Schneider Electric LC1K0910F7
TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 110 V AC coil
This Schneider Electric LC1K0910F7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801409875.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$68.03
(inc. GST)
In Stock
| Range | TeSys |
| Product or component type | Contactor |
| Device short name | LC1K |
| Device application | Control |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-3 | AC-3e | AC-1 | AC-4 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz | Signalling circuit: <= 690 V AC <= 400 Hz |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit | 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz AC-3 | 4 kW at 380...415 V AC 50/60 Hz AC-3 | 4 kW at 440/690 V AC 50/60 Hz AC-3 | 2.2 kW at 220...230 V AC 50/60 Hz AC-3e | 4 kW at 380...415 V AC 50/60 Hz AC-3e | 4 kW at 440/690 V AC 50/60 Hz AC-3e | 2.2 kW at 220...230 V AC 50/60 Hz AC-4 | 4 kW at 380...415 V AC 50/60 Hz AC-4 | 4 kW at 440/690 V AC 50/60 Hz AC-4 |
| Auxiliary contact composition | 1 NO |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 20 A (at 60 °C) for power circuit | 10 A (at 50 °C) for signalling circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to IEC 60947 | 110 A AC for signalling circuit conforming to IEC 60947 |
| Rated breaking capacity | 110 A at 220...230 V conforming to IEC 60947 | 110 A at 380...400 V conforming to IEC 60947 | 110 A at 415 V conforming to IEC 60947 | 110 A at 440 V conforming to IEC 60947 | 80 A at 500 V conforming to IEC 60947 | 70 A at 660...690 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 90 A 50 °C - 1 s for power circuit | 85 A 50 °C - 5 s for power circuit | 80 A 50 °C - 10 s for power circuit | 60 A 50 °C - 30 s for power circuit | 45 A 50 °C - 1 min for power circuit | 40 A 50 °C - 3 min for power circuit | 20 A 50 °C - >= 15 min for power circuit | 80 A - 1 s for signalling circuit | 90 A - 500 ms for signalling circuit | 110 A - 100 ms for signalling circuit |
| Associated fuse rating | 25 A gG at <= 440 V for power circuit | 25 A aM for power circuit | 10 A gG for signalling circuit conforming to IEC 60947 | 10 A gG for signalling circuit conforming to VDE 0660 |
| Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Inrush power in VA | 30 VA (at 20 °C) |
| Hold-in power consumption in VA | 4.5 VA (at 20 °C) |
| Heat dissipation | 1.3 W |
| Control circuit voltage limits | Operational: 0.8...1.15 Uc (at <50 °C) | Drop-out: >= 0.20 Uc (at <50 °C) |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid | Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 1.5…4 mm²solid | Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end | Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| Maximum operating rate | 3600 cyc/h |
| Coil technology | Without built-in suppressor module |
| Auxiliary contacts type | type instantaneous 1 NO |
| Signalling circuit frequency | <= 400 Hz |
| Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit |
| Operating time | 10...20 ms coil de-energisation and NO opening | 10...20 ms coil energisation and NO closing |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Non overlap distance | 0.5 mm |
| Mechanical durability | 10 Mcycles |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V | 1.3 Mcycles 9 A AC-3e at Ue <= 440 V | 0.16 Mcycles 20 A AC-1 at Ue <= 690 V | 0.02 Mcycles 54 A AC-4 at Ue <= 440 V |
| Mechanical robustness | Shocks contactor closed, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor closed, on Y axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor closed, on Z axis: 15 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on X axis: 6 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks contactor opened, on Z axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 | Vibrations contactor opened: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| Standards | EN/IEC 60947-4-1 | GB/T 14048.4 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | JIS C8201-4-1 | IEC 60335-1:Clause 30.2 | IEC 60335-2-40:Annex JJ | UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme | CCC | UL | CSA | EAC | CE | UKCA |
| Protective treatment | TC conforming to IEC 60068 | TC conforming to DIN 50016 |
| Operating altitude | 2000 m without derating |
| Flame retardance | V1 conforming to UL 94 | Requirement 2 conforming to NF F 16-101 | Requirement 2 conforming to NF F 16-102 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.600 cm |
| Package 1 Width | 4.800 cm |
| Package 1 Length | 6.200 cm |
| Package 1 Weight | 180.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.311 kg |
