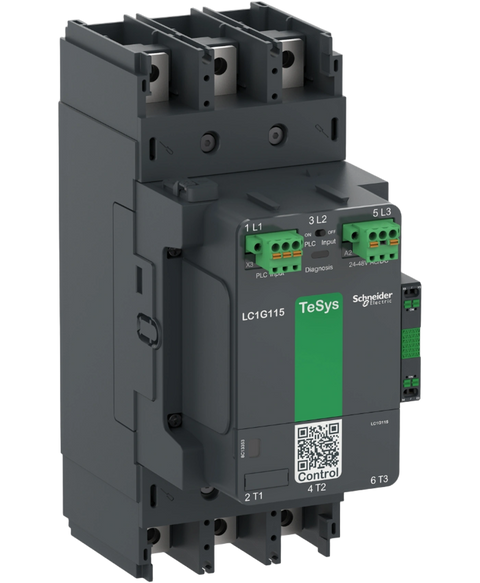

Schneider Electric LC1G185LSEA
High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 185A, advanced version, 200500V wide band AC,DC coil
This Schneider Electric LC1G185LSEA is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805565590.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,331.08
(inc. GST)
Out of Stock
| Range | TeSys |
| Range of product | TeSys Giga |
| Product or component type | Contactor |
| Device short name | LC1G |
| Contactor application | Power switching | Motor control |
| Utilisation category | AC-1 | AC-3 | AC-3e | AC-4 | AC-5a | AC-5b | AC-6a | AC-6b | AC-8b | AC-8a | DC-1 | DC-3 | DC-5 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz | <= 460 V DC |
| [Ie] rated operational current | 305 A (at <40 °C) at <= 1000 V AC-1 | 185 A (at <60 °C) at <= 440 V AC-3 |
| [Uc] control circuit voltage | 200...500 V AC 50/60 Hz | 200...500 V DC |
| Control circuit voltage limits | Operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C) | Drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| Rated breaking capacity | 1610 A at 440 V |
| [Icw] rated short-time withstand current | 1.5 kA - 10 s | 0.92 kA - 30 s | 0.74 kA - 1 min | 0.5 kA - 3 min | 0.4 kA - 10 min |
| Associated fuse rating | 200 A aM at <= 440 V for motor | 160 A aM at <= 690 V for motor | 315 A gG at <= 690 V | 300 A UL Type J at <= 600 V |
| Average impedance | 0.00017 Ohm |
| [Ui] rated insulation voltage | 1000 V |
| Power dissipation per pole | 20 W AC-1 - Ith 305 A | 6 W AC-3 - Ith 185 A |
| Compatibility code | LC1G |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Motor power kW | 55 kW at 230 V AC 50/60 Hz (AC-3e) | 90 kW at 400 V AC 50/60 Hz (AC-3e) | 90 kW at 415 V AC 50/60 Hz (AC-3e) | 110 kW at 440 V AC 50/60 Hz (AC-3e) | 110 kW at 500 V AC 50/60 Hz (AC-3e) | 110 kW at 690 V AC 50/60 Hz (AC-3e) | 75 kW at 1000 V AC 50/60 Hz (AC-3e) | 55 kW at 230 V AC 50/60 Hz (AC-3) | 90 kW at 400 V AC 50/60 Hz (AC-3) | 90 kW at 415 V AC 50/60 Hz (AC-3) | 110 kW at 440 V AC 50/60 Hz (AC-3) | 110 kW at 500 V AC 50/60 Hz (AC-3) | 110 kW at 690 V AC 50/60 Hz (AC-3) | 75 kW at 1000 V AC 50/60 Hz (AC-3) | 55 kW at 230 V AC 50/60 Hz (AC-4) | 90 kW at 400 V AC 50/60 Hz (AC-4) | 90 kW at 415 V AC 50/60 Hz (AC-4) | 100 kW at 440 V AC 50/60 Hz (AC-4) | 110 kW at 500 V AC 50/60 Hz (AC-4) | 110 kW at 690 V AC 50/60 Hz (AC-4) | 75 kW at 1000 V AC 50/60 Hz (AC-4) |
| Motor power hp | 50 hp at 200/208 V 60 Hz | 60 hp at 230/240 V 60 Hz | 125 hp at 460/480 V 60 Hz | 150 hp at 575/600 V 60 Hz |
| Coil technology | Built-in bidirectional peak limiting |
| Safety reliability level | B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 8 Mcycles |
| inrush power in VA (50/60 Hz, AC) | 295 VA |
| inrush power in W (DC) | 215 W |
| hold-in power consumption in VA (50/60 Hz, AC) | 13.0 VA |
| hold-in power consumption in W (DC) | 8.0 W |
| Operating time | 40...70 ms closing | 15...50 ms opening |
| Maximum operating rate | 600 cyc/h AC-3 | 600 cyc/h AC-3e | 300 cyc/h AC-1 | 150 cyc/h AC-4 |
| Connections - terminals | Power circuit: bar 2 - busbar cross section: 25 x 6 mm | Power circuit: lugs-ring terminals 1 185 mm² | Power circuit: bolted connection | Control circuit: push-in 1 0.2…2.5 mm² - cable stiffness: solid stranded without cable end | Control circuit: push-in 1 0.25…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: push-in 2 0.5…1.0 mm² with cable end | Control circuit: push-in 0.75…2.5 mm² - cable stiffness: solid stranded without cable end | Control circuit: push-in 0.75…2.5 mm² - cable stiffness: flexible with cable end |
| Connection pitch | 35 mm |
| Mounting support | Plate |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | JIS C8201-4-1 | JIS C8201-5-1 | IEC 60335-1:Clause 30.2 | IEC 60335-2-40:Annex JJ | UL 60335-1 | UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme | CCC | cULus | EAC | CE | UKCA | EU-RO-MR by DNV-GL |
| Tightening torque | 18 N.m |
| Height | 255 mm |
| Width | 108 mm |
| Depth | 193 mm |
| Net weight | 4.1 kg |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529 | IP2X front face with shrouds conforming to VDE 0106 |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Mechanical robustness | Vibrations 5…300 Hz 2 gn contactor open | Vibrations 5…300 Hz 4 gn contactor closed | Shocks 10 gn 11 ms contactor open | Shocks 15 gn 11 ms contactor closed |
| Colour | Dark grey |
| Protective treatment | TH |
| Permissible ambient air temperature around the device | -40…70 °C at Uc |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 26.000 cm |
| Package 1 Width | 17.500 cm |
| Package 1 Length | 32.000 cm |
| Package 1 Weight | 5.076 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 74.912 kg |
