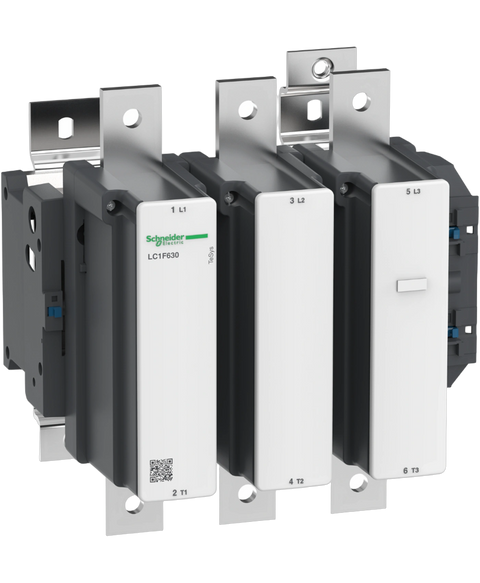

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1F630M7
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 630 A - coil 220 V AC
This Schneider Electric LC1F630M7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805521673.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$2,530.33
(inc. GST)
Out of Stock
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-3 | AC-1 | AC-4 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz | <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 1000 A (at <40 °C) at <= 440 V AC AC-1 | 630 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 1000 A (at 40 °C) | 1250 A |
| Rated breaking capacity | 5040 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 5050 A 40 °C - 10 s | 4400 A 40 °C - 30 s | 3400 A 40 °C - 1 min | 2200 A 40 °C - 3 min | 1600 A 40 °C - 10 min |
| Associated fuse rating | 1000 A gG at <= 440 V | 630 A aM at <= 440 V |
| Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 120 W AC-1 | 48 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 335 kW at 380...400 V AC 50/60 Hz (AC-3) | 375 kW at 415 V AC 50/60 Hz (AC-3) | 400 kW at 440 V AC 50/60 Hz (AC-3) | 400 kW at 500 V AC 50/60 Hz (AC-3) | 450 kW at 660...690 V AC 50/60 Hz (AC-3) | 450 kW at 1000 V AC 50/60 Hz (AC-3) | 200 kW at 220...230 V AC 50/60 Hz (AC-3) | 100 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.25...0.5 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 5 Mcycles |
| Inrush power in VA | 1650 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 22 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 1200 cyc/h 55 °C |
| Operating time | 40...80 ms closing | 100...200 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | Power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm | Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m | Power circuit: 58 N.m |
| Mounting support | Plate |
| Heat dissipation | 20 W |
| motor power range | 250…500 kW at 380…440 V 3 phases | 110…220 kW at 200…240 V 3 phases | 250…500 kW at 480…500 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| Standards | EN 60947-1 | IEC 60947-4-1 | JIS C8201-4-1 | IEC 60947-1 | EN 60947-4-1 |
| Product certifications | LROS (Lloyds register of shipping) | CB | UL | RMRoS | CSA | ABS | BV | DNV | RINA | UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Height | 304 mm |
| Width | 309 mm |
| Depth | 255 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 18.6 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 30.000 cm |
| Package 1 Width | 37.000 cm |
| Package 1 Length | 47.000 cm |
| Package 1 Weight | 18.433 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 82.232 kg |
