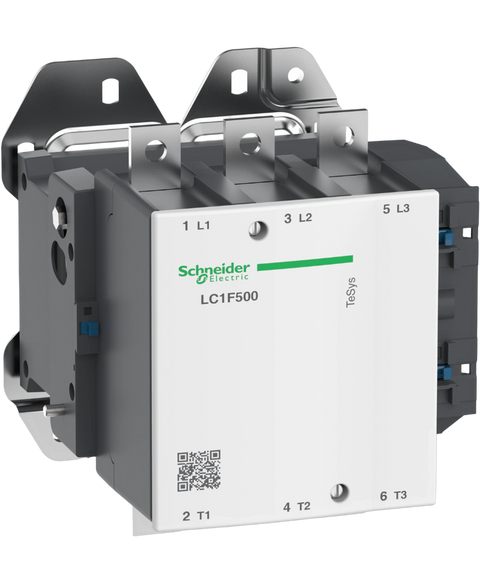

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1F500
The LC1F500 contactor from Schneider Electric is engineered to manage substantial electrical loads. Designed for three-phase applications, it is rated for a current of 700 A and a voltage of 1000 VAC, making it suitable for operational tasks involving motors up to 250 kW at 400 V.
This Schneider Electric LC1F500 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805677869.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$656.03
(inc. GST)
In Stock
| Range | TeSys |
| Product name | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-4 | AC-1 | AC-3 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz | <= 460 V DC |
| [Ie] rated operational current | 700 A (at <40 °C) at <= 440 V AC AC-1 | 500 A (at <55 °C) at <= 440 V AC AC-3 |
| Motor power kW | 250 kW at 380...400 V AC 50/60 Hz (AC-3) | 280 kW at 415 V AC 50/60 Hz (AC-3) | 295 kW at 440 V AC 50/60 Hz (AC-3) | 335 kW at 1000 V AC 50/60 Hz (AC-3) | 355 kW at 500 V AC 50/60 Hz (AC-3) | 147 kW at 220...240 V AC 50/60 Hz (AC-3) | 335 kW at 660...690 V AC 50/60 Hz (AC-3) | 80 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage | 48...1000 V AC 40...400 Hz with LX1/LX9 coil | 48...440 V DC with LX4 coil |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| Irms rated making capacity | 5000 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 4200 A 40 °C - 10 s | 3200 A 40 °C - 30 s | 2400 A 40 °C - 1 min | 1500 A 40 °C - 3 min | 1200 A 40 °C - 10 min |
| Associated fuse rating | 500 A aM at <= 440 V | 800 A gG at <= 440 V |
| Average impedance | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 88 W AC-1 | 45 W AC-3 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil | Drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil | Operational: 0.85...1.1 Uc DC with LX4 coil | Drop-out: 0.2...0.35 Uc DC with LX4 coil |
| Heat dissipation | 18 W |
| Operating time | 40...75 ms closing for with LX1/LX9 coil | 100...170 ms opening for with LX1/LX9 coil | 50...60 ms closing for with LX4 coil | 45...60 ms opening for with LX4 coil |
| Mounting support | Plate |
| Standards | JIS C8201-4-1 | EN 60947-1 | IEC 60947-1 | EN 60947-4-1 | IEC 60947-4-1 |
| Product certifications | CSA | LROS (Lloyds register of shipping) | DNV | BV | ABS | CB | RMRoS | RINA | UL | UKCA |
| Connections - terminals | Power circuit: lugs-ring terminals 2 cable(s) 240 mm² | Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm | Power circuit: bolted connection | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² |
| Tightening torque | Power circuit: 35 N.m | Control circuit: 1.2 N.m |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1050…1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 990…1220 VA (at 20 °C)with LX4 coil |
| Hold-in power consumption in VA | 16…20 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 4.54…8 VA (at 20 °C)with LX4 coil |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Compatibility code | LC1F |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz | Vibrations contactor closed: 4 Gn, 5...300 Hz | Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) | Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
| Height | 238 mm |
| Width | 233 mm |
| Depth | 232 mm |
| Net weight | 9.75 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.500 cm |
| Package 1 Width | 30.000 cm |
| Package 1 Length | 30.000 cm |
| Package 1 Weight | 10.398 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 92.332 kg |
