Schneider Electric LC1F400
Product image for illustrative purposes only. Actual item may vary.
Schneider Electric logo

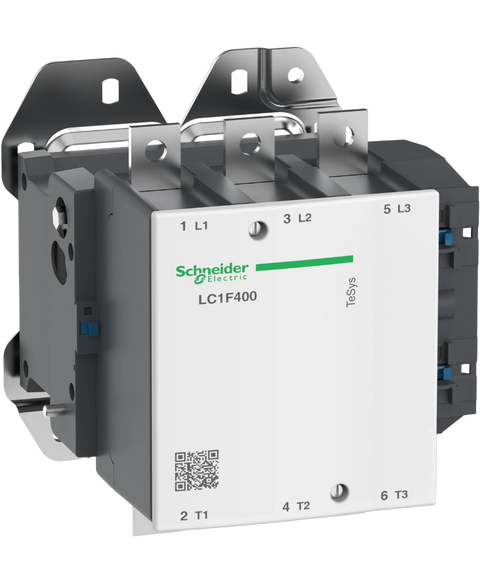

Schneider Electric LC1F400

SKU: PL26805594962
MPN: LC1F400

TeSys F contactor-3P(3 NO)-AC-3 <= 440V 1100A without coil LX1,LX9 -481000V AC 40,400Hz, LX4 -48...440V DC, LXE -100...250V AC 50,60Hz or 100380V DC

This Schneider Electric LC1F400 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805594962.

Brand New - 12 Months Warranty
$1,329.66 (inc. GST)
In Stock

Datasheet

Range TeSys
Product name TeSys F
Product or component type Contactor
Device short name LC1F
Contactor application Resistive load | Motor control
Utilisation category AC-3 | AC-1 | AC-4
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage <= 1000 V AC 50/60 Hz | <= 460 V DC
[Ie] rated operational current 500 A (at <40 °C) at <= 440 V AC AC-1 | 400 A (at <55 °C) at <= 440 V AC AC-3
Motor power kW 185 kW at 1000 V AC 50/60 Hz (AC-3) | 200 kW at 380...400 V AC 50/60 Hz (AC-3) | 220 kW at 415 V AC 50/60 Hz (AC-3) | 250 kW at 440 V AC 50/60 Hz (AC-3) | 257 kW at 500 V AC 50/60 Hz (AC-3) | 110 kW at 220...240 V AC 50/60 Hz (AC-3) | 280 kW at 660...690 V AC 50/60 Hz (AC-3) | 75 kW at 400 V AC 50/60 Hz (AC-4)
[Uc] control circuit voltage 48...1000 V AC 40...400 Hz with LX1/LX9 coil | 48...440 V DC with LX4 coil | 100...250 V AC 50/60 Hz with LXE coil | 100...380 V DC with LXE coil
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal current 500 A (at 40 °C)
Irms rated making capacity 4000 A AC conforming to IEC 60947-4-1
Rated breaking capacity 3200 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 3600 A 40 °C - 10 s | 2400 A 40 °C - 30 s | 1700 A 40 °C - 1 min | 1200 A 40 °C - 3 min | 1000 A 40 °C - 10 min
Associated fuse rating 400 A aM at <= 440 V | 500 A gG at <= 440 V
Average impedance 0.26 mOhm - Ith 500 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C
Power dissipation per pole 65 W AC-1 | 42 W AC-3
Control circuit voltage limits Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil | Drop-out: 0.3...0.5 Uc AC 40...400 Hz with LX1/LX9 coil | Operational: 0.85...1.1 Uc DC with LX4 coil | Drop-out: 0.2...0.35 Uc DC with LX4 coil | Operational: 85...275 V AC 50/60 Hz with LXE coil | Drop-out: 0...60 V AC 50/60 Hz with LXE coil | Operational: 85...418 V DC with LXE coil | Drop-out: 0...45 V DC with LXE coil
Heat dissipation 14 W | 2.2…5.5 W
Operating time 40...75 ms closing for with LX1/LX9 coil | 100...170 ms opening for with LX1/LX9 coil | 50...60 ms closing for with LX4 coil | 45...60 ms opening for with LX4 coil | 40...80 ms closing for with LXE coil | 6...54 ms opening for with LXE coil
Mounting support Plate
Standards JIS C8201-4-1 | IEC 60947-4-1 | IEC 60947-1 | EN 60947-4-1 | EN 60947-1
Product certifications CB | ABS | DNV | RMRoS | LROS (Lloyds register of shipping) | BV | RINA | UL | CSA | UKCA
Connections - terminals Power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm | Power circuit: lugs-ring terminals 2 cable(s) 150 mm² | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end
Tightening torque Power circuit: 35 N.m | Control circuit: 1.2 N.m | Control circuit: 0.6 N.m
Mechanical durability 10 Mcycles
Inrush power in VA 1000…1150 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 920…1140 VA (at 20 °C)with LX4 coil | 360…470 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 410…450 VA (at 20 °C)with LXE coil
Hold-in power consumption in VA 12…18 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 4…7.5 VA (at 20 °C)with LX4 coil | 4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 2.5…4.0 VA (at 20 °C)with LXE coil
Maximum operating rate 2400 cyc/h 55 °C
Compatibility code LC1F
IP degree of protection IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106
Protective treatment TH
Ambient air temperature for operation -5…55 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device -40…70 °C
Operating altitude 3000 m without derating
Mechanical robustness Vibrations contactor open: 1.5 Gn, 5...300 Hz | Vibrations contactor closed: 5 Gn, 5...300 Hz | Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms) | Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms)
Height 206 mm
Width 213 mm
Depth 219 mm
Net weight 8 kg
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 26.000 cm
Package 1 Width 24.500 cm
Package 1 Length 32.500 cm
Package 1 Weight 8.126 kg
Unit Type of Package 2 P06
Number of Units in Package 2 10
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 91.540 kg
