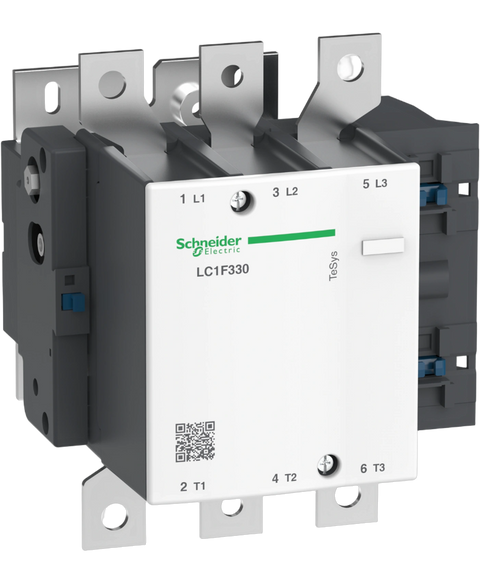

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1F330
The LC1F330 is a contactor manufactured by Schneider Electric as part of the TeSys series. It operates at a system voltage of up to 1000 V AC and is suitable for various utilization categories, including AC-1, AC-3, and AC-4. With a rated operational current of 400 A at temperatures below 40°C and 330 A at 55°C, this contactor is designed to handle substantial loads efficiently.
This Schneider Electric LC1F330 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805618282.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$590.71
(inc. GST)
Out of Stock
| Range | TeSys |
| Product name | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-4 | AC-3 | AC-1 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz | <= 460 V DC |
| [Ie] rated operational current | 400 A (at <40 °C) at <= 440 V AC AC-1 | 330 A (at <55 °C) at <= 440 V AC AC-3 |
| Motor power kW | 160 kW at 1000 V AC 50/60 Hz (AC-3) | 160 kW at 380...400 V AC 50/60 Hz (AC-3) | 180 kW at 415 V AC 50/60 Hz (AC-3) | 200 kW at 440 V AC 50/60 Hz (AC-3) | 200 kW at 500 V AC 50/60 Hz (AC-3) | 100 kW at 220...240 V AC 50/60 Hz (AC-3) | 220 kW at 660...690 V AC 50/60 Hz (AC-3) | 59 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage | 24...1000 V AC 40...400 Hz with LX1/LX9 coil | 24...460 V DC with LX4 coil | 100...250 V AC 50/60 Hz with LXE coil | 100...380 V DC with LXE coil |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 400 A (at 40 °C) |
| Irms rated making capacity | 3300 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 2640 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 2650 A 40 °C - 10 s | 1800 A 40 °C - 30 s | 1300 A 40 °C - 1 min | 900 A 40 °C - 3 min | 750 A 40 °C - 10 min |
| Associated fuse rating | 400 A aM at <= 440 V | 500 A gG at <= 440 V |
| Average impedance | 0.28 mOhm - Ith 400 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 44 W AC-1 | 31 W AC-3 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil | Drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil | Operational: 0.85...1.1 Uc DC with LX4 coil | Drop-out: 0.15...0.2 Uc DC with LX4 coil | Operational: 85...275 V AC 50/60 Hz with LXE coil | Drop-out: 0...60 V AC 50/60 Hz with LXE coil | Operational: 85...418 V DC with LXE coil | Drop-out: 0...45 V DC with LXE coil |
| Heat dissipation | 8 W | 2.2…5.5 W |
| Operating time | 40...65 ms closing for with LX1/LX9 coil | 100...170 ms opening for with LX1/LX9 coil | 40...50 ms closing for with LX4 coil | 40...65 ms opening for with LX4 coil | 40...80 ms closing for with LXE coil | 6...54 ms opening for with LXE coil |
| Mounting support | Plate |
| Standards | IEC 60947-4-1 | JIS C8201-4-1 | EN 60947-1 | IEC 60947-1 | EN 60947-4-1 |
| Product certifications | ABS | CSA | UL | RMRoS | DNV | CB | BV | LROS (Lloyds register of shipping) | RINA | UKCA |
| Connections - terminals | Power circuit: lugs-ring terminals 1 cable(s) 240 mm² | Power circuit: bar 2 cable(s) - busbar cross section: 30 x 5 mm | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end |
| Tightening torque | Power circuit: 35 N.m | Control circuit: 1.2 N.m | Control circuit: 0.6 N.m |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 600…700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 655…803 VA (at 20 °C)with LX4 coil | 300…350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 300…310 VA (at 20 °C)with LXE coil |
| Hold-in power consumption in VA | 8…10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 3.68…4.53 VA (at 20 °C)with LX4 coil | 4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 2.5…4.0 VA (at 20 °C)with LXE coil |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Compatibility code | LC1F |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz | Vibrations contactor closed: 5 Gn, 5...300 Hz | Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms) | Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
| Height | 206 mm |
| Width | 213 mm |
| Depth | 219 mm |
| Net weight | 9.5 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.000 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 35.000 cm |
| Package 1 Weight | 8.420 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 93.720 kg |
