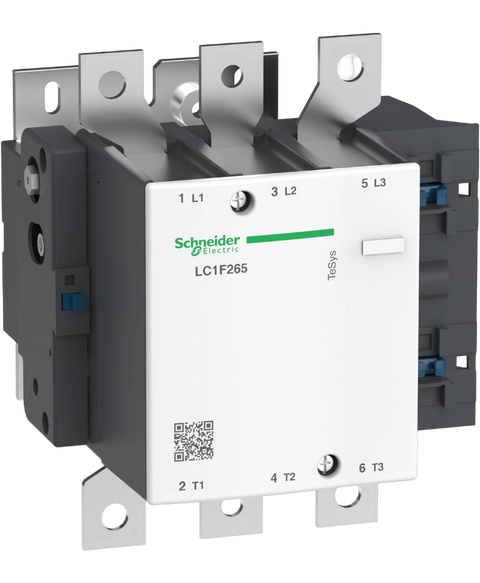

Schneider Electric LC1F265F7
TeSys F contactor - 3P (3 NO) - AC-3 - <= 440 V 265 A - coil 110 V AC
This Schneider Electric LC1F265F7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805649461.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,304.14
(inc. GST)
In Stock
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-1 | AC-4 | AC-3 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC-1 | <= 690 V AC-3 | <= 690 V AC-4 | <= 460 V DC |
| [Uc] control circuit voltage | 110 V AC 40...400 Hz |
| [Ie] rated operational current | 350 A (at <40 °C) at <= 440 V AC AC-1 | 265 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 350 A (at 40 °C) |
| Rated breaking capacity | 2120 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 2200 A 40 °C - 10 s | 1230 A 40 °C - 30 s | 950 A 40 °C - 1 min | 620 A 40 °C - 3 min | 480 A 40 °C - 10 min |
| Associated fuse rating | 315 A aM at <= 440 V | 400 A gG at <= 440 V |
| Average impedance | 0.3 mOhm - Ith 350 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 37 W AC-1 | 21 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 132 kW at 380...400 V AC 50/60 Hz (AC-3) | 140 kW at 415 V AC 50/60 Hz (AC-3) | 140 kW at 440 V AC 50/60 Hz (AC-3) | 160 kW at 500 V AC 50/60 Hz (AC-3) | 160 kW at 660...690 V AC 50/60 Hz (AC-3) | 147 kW at 1000 V AC 50/60 Hz (AC-3) | 75 kW at 220...230 V AC 50/60 Hz (AC-3) | 51 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.15...0.2 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 650 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 10 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 40...65 ms closing | 100...170 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm | Power circuit: lugs-ring terminals 1 cable(s) 240 mm² | Power circuit: connector 1 cable(s) 240 mm² | Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m | Power circuit: 35 N.m |
| Mounting support | Plate |
| Heat dissipation | 8 W |
| motor power range | 55…100 kW at 200…240 V 3 phases | 110…220 kW at 480…500 V 3 phases | 110…220 kW at 380…440 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 110 V AC standard |
| Standards | EN 60947-4-1 | JIS C8201-4-1 | EN 60947-1 | IEC 60947-1 | IEC 60947-4-1 |
| Product certifications | BV | RINA | CSA | UL | DNV | RMRoS | CB | LROS (Lloyds register of shipping) | ABS | UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Height | 203 mm |
| Width | 201.5 mm |
| Depth | 213 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 7.44 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.500 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 7.989 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 104.368 kg |
