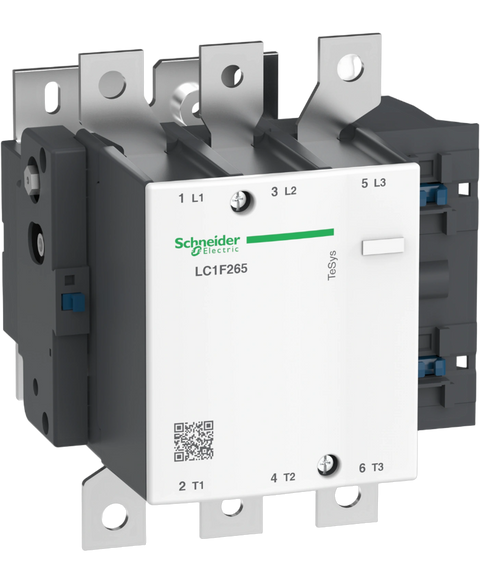

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1F265
The LC1F265 is a contactor designed to meet various industrial electrical control needs. It supports a rated operational current of up to 350 A and is compatible with motor applications requiring up to 132 kW of power.
This Schneider Electric LC1F265 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26886035686.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$825.01
(inc. GST)
In Stock
| Range | TeSys |
| Product name | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-3 | AC-4 | AC-1 |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ie] rated operational current | 350 A (at <40 °C) at <= 440 V AC AC-1 | 265 A (at <55 °C) at <= 440 V AC AC-3 |
| Motor power kW | 132 kW at 380...400 V AC 50/60 Hz (AC-3) | 140 kW at 415 V AC 50/60 Hz (AC-3) | 140 kW at 440 V AC 50/60 Hz (AC-3) | 147 kW at 1000 V AC 50/60 Hz (AC-3) | 160 kW at 500 V AC 50/60 Hz (AC-3) | 75 kW at 220...240 V AC 50/60 Hz (AC-3) | 160 kW at 660...690 V AC 50/60 Hz (AC-3) | 51 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage | 24...1000 V AC 40...400 Hz with LX1/LX9 coil | 24...460 V DC with LX4 coil | 100...250 V AC 50/60 Hz with LXE coil | 100...380 V with LXE coil |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 350 A (at 40 °C) |
| Irms rated making capacity | 2650 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 2120 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 2200 A 40 °C - 10 s | 1230 A 40 °C - 30 s | 950 A 40 °C - 1 min | 620 A 40 °C - 3 min | 480 A 40 °C - 10 min |
| Associated fuse rating | 315 A aM at <= 440 V | 400 A gG at <= 440 V |
| Average impedance | 0.3 mOhm - Ith 350 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 37 W AC-1 | 21 W AC-3 |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil | Drop-out: 0.35...0.55 Uc AC 40...400 Hz with LX1/LX9 coil | Operational: 0.85...1.1 Uc DC with LX4 coil | Drop-out: 0.15...0.2 Uc DC with LX4 coil | Operational: 85...275 V AC 50/60 Hz with LXE coil | Drop-out: 0...60 V AC 50/60 Hz with LXE coil | Operational: 85...418 V DC with LXE coil | Drop-out: 0...45 V DC with LXE coil |
| Heat dissipation | 8 W | 2.2…2.5 W |
| Operating time | 40...65 ms closing for with LX1/LX9 coil | 100...170 ms opening for with LX1/LX9 coil | 40...50 ms closing for with LX4 coil | 40...65 ms opening for with LX4 coil | 40...80 ms closing for with LXE coil | 6...54 ms opening for with LXE coil |
| Mounting support | Plate |
| Standards | IEC 60947-1 | IEC 60947-4-1 | JIS C8201-4-1 | EN 60947-1 | EN 60947-4-1 |
| Product certifications | ABS | CB | DNV | RMRoS | UL | CSA | RINA | LROS (Lloyds register of shipping) | BV | UKCA |
| Connections - terminals | Power circuit: bar 2 cable(s) - busbar cross section: 32 x 4 mm | Power circuit: lugs-ring terminals 1 cable(s) 240 mm² | Power circuit: connector 1 cable(s) 240 mm² | Power circuit: bolted connection | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end |
| Tightening torque | Power circuit: 35 N.m | Control circuit: 1.2 N.m | Control circuit: 0.6 N.m |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 600…700 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 655…803 VA (at 20 °C)with LX4 coil | 300…350 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 300…310 VA (at 20 °C)with LXE coil |
| Hold-in power consumption in VA | 8…10 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 3.68…4.53 VA (at 20 °C)with LX4 coil | 4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 2.5…4.0 VA (at 20 °C)with LXE coil |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Compatibility code | LC1F |
| [Ue] rated operational voltage | <= 1000 V AC-1 | <= 690 V AC-3 | <= 690 V AC-4 | <= 460 V DC |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open: 2 Gn, 5...300 Hz | Vibrations contactor closed: 5 Gn, 5...300 Hz | Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms) | Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) |
| Height | 203 mm |
| Width | 201.5 mm |
| Depth | 213 mm |
| Net weight | 8.54 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.000 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 28.000 cm |
| Package 1 Weight | 7.159 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 95.140 kg |
