Schneider Electric LC1F185F7

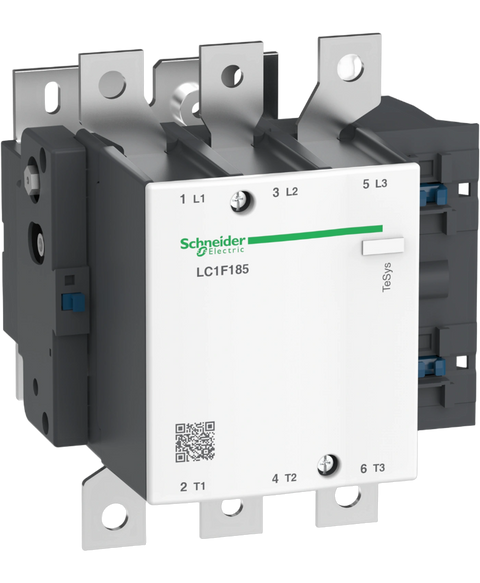

The Schneider Electric LC1F185F7 is a robust contactor designed to operate with a rated voltage of up to 440 volts AC. Its rated current capacity is 185 A, making it suitable for demanding applications where reliability is essential in motor control.
This Schneider Electric LC1F185F7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805537227.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-1 | AC-3 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 460 V DC | <= 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 110 V AC 40...400 Hz |
| [Ie] rated operational current | 275 A (at <40 °C) at <= 440 V AC-1 | 185 A (at <55 °C) at <= 440 V AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 275 A (at 40 °C) |
| Rated breaking capacity | 1480 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 1500 A 40 °C - 10 s | 920 A 40 °C - 30 s | 740 A 40 °C - 1 min | 500 A 40 °C - 3 min | 400 A 40 °C - 10 min |
| Associated fuse rating | 200 A aM at <= 440 V | 315 A gG at <= 440 V |
| Average impedance | 0.33 mOhm - Ith 275 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 12 W AC-3 | 25 W AC-1 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 90 kW at 380...400 V AC 50/60 Hz (AC-3) | 100 kW at 415 V AC 50/60 Hz (AC-3) | 100 kW at 440 V AC 50/60 Hz (AC-3) | 110 kW at 500 V AC 50/60 Hz (AC-3) | 110 kW at 660...690 V AC 50/60 Hz (AC-3) | 55 kW at 220...230 V AC 50/60 Hz (AC-3) | 33 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.2...0.55 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1070 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 9.9 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 35 ms closing (at Uc) | 130 ms opening (at Uc) |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | Power circuit: bar 2 cable(s) - busbar cross section: 25 x 3 mm | Power circuit: lugs-ring terminals 1 cable(s) 150 mm² | Power circuit: connector 1 cable(s) 150 mm² | Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m | Power circuit: 18 N.m |
| Mounting support | Plate |
| Heat dissipation | 8…9.8 W |
| motor power range | 30…50 kW at 200…240 V 3 phases | 55…100 kW at 200…240 V 3 phases | 55…100 kW at 380…440 V 3 phases | 55…100 kW at 480…500 V 3 phases | 110…220 kW at 480…500 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 110 V AC standard |
| Standards | EN 60947-4-1 | IEC 60947-4-1 | EN 60947-1 | IEC 60947-1 | JIS C8201-4-1 |
| Product certifications | UL | CSA | ABS | LROS (Lloyds register of shipping) | CB | DNV | RINA | RMRoS | BV | UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529 | IP2X front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Height | 174 mm |
| Width | 168.5 mm |
| Depth | 181 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 4.65 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 23.900 cm |
| Package 1 Width | 24.000 cm |
| Package 1 Length | 25.500 cm |
| Package 1 Weight | 4.898 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 67.276 kg |
