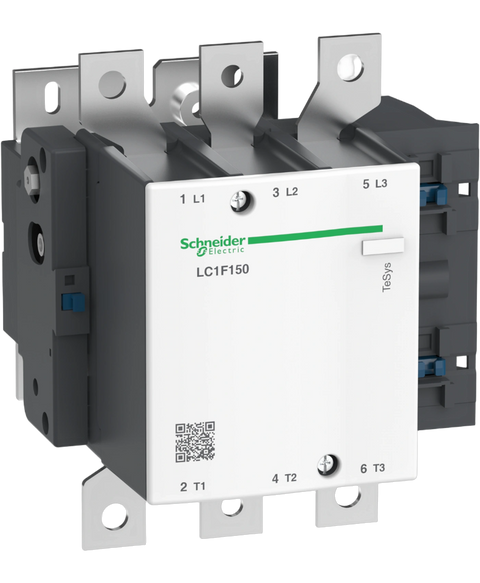

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric logo

Schneider Electric LC1F150

SKU: PL26801443565
MPN: LC1F150

TeSys F contactor - 3P(3 NO)-AC-3 <= 440V 150A Without coil LX9 - 24...600V AC 40,400Hz, LX4 - 24...460V DC, LXE - 100...250V AC 50,60Hz or 100380V DC

This Schneider Electric LC1F150 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801443565.

Brand New - 12 Months Warranty
$554.25 (inc. GST)
In Stock

Datasheet

Range TeSys
Product name TeSys F
Product or component type Contactor
Device short name LC1F
Contactor application Resistive load | Motor control
Utilisation category AC-1 | AC-4 | AC-3
Poles description 3P
power pole contact composition 3 NO
[Ue] rated operational voltage <= 690 V AC 50/60 Hz | <= 460 V DC
[Ie] rated operational current 250 A (at <40 °C) at <= 440 V AC-1 | 150 A (at <55 °C) at <= 440 V AC-3
Motor power kW 75 kW at 380...400 V AC 50/60 Hz (AC-3) | 80 kW at 415 V AC 50/60 Hz (AC-3) | 80 kW at 440 V AC 50/60 Hz (AC-3) | 90 kW at 500 V AC 50/60 Hz (AC-3) | 40 kW at 220...240 V AC 50/60 Hz (AC-3) | 100 kW at 660...690 V AC 50/60 Hz (AC-3) | 22 kW at 400 V AC 50/60 Hz (AC-4)
[Uc] control circuit voltage 24...575 V AC 40...400 Hz with LX1/LX9 coil | 24...460 V DC with LX4 coil | 100...250 V AC 50/60 Hz with LXE coil | 100...380 V DC with LXE coil
[Uimp] rated impulse withstand voltage 8 kV
Overvoltage category III
[Ith] conventional free air thermal current 250 A (at 40 °C)
Irms rated making capacity 1500 A conforming to IEC 60947-4-1
Rated breaking capacity 1200 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current 1200 A 40 °C - 10 s | 700 A 40 °C - 30 s | 600 A 40 °C - 1 min | 450 A 40 °C - 3 min | 350 A 40 °C - 10 min
Associated fuse rating 160 A aM at <= 440 V | 250 A gG at <= 440 V
Average impedance 0.35 mOhm - Ith 250 A 50 Hz
[Ui] rated insulation voltage 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C
Power dissipation per pole 22 W AC-1 | 8 W AC-3
Control circuit voltage limits Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil | Drop-out: 0.2...0.55 Uc AC 40...400 Hz with LX1/LX9 coil | Operational: 0.85...1.1 Uc DC with LX4 coil | Drop-out: 0.15...0.2 Uc DC with LX4 coil | Operational: 85...275 V AC 50/60 Hz with LXE coil | Drop-out: 0...60 V AC 50/60 Hz with LXE coil | Operational: 85...418 V DC with LXE coil | Drop-out: 0...45 V DC with LXE coil
Heat dissipation 5.9…7.2 W | 2.2…2.5 W
Operating time 35 ms closing for with LX1/LX9 coil | 130 ms opening for with LX1/LX9 coil | 30...40 ms closing for with LX4 coil | 30...50 ms opening for with LX4 coil | 40...80 ms closing for with LXE coil | 6...54 ms opening for with LXE coil
Mounting support Plate
Standards IEC 60947-4-1 | EN 60947-4-1 | IEC 60947-1 | EN 60947-1 | JIS C8201-4-1
Product certifications RINA | CSA | BV | RMRoS | LROS (Lloyds register of shipping) | DNV | ABS | UL | CB | UKCA
Connections - terminals Power circuit: lugs-ring terminals 1 cable(s) 120 mm² - busbar cross section: 25 x 3 mm | Power circuit: connector 1 cable(s) 120 mm² | Power circuit: bar 2 cable(s) | Power circuit: bolted connection | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm² | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²flexible without cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.25…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1.0 cable(s) 0.2…2.5 mm²solid without cable end
Tightening torque Power circuit: 18 N.m | Control circuit: 1.2 N.m | Control circuit: 0.6 N.m
Mechanical durability 10 Mcycles
Inrush power in VA 690…855 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 543…665 VA (at 20 °C)with LX4 coil | 280…310 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 270…320 VA (at 20 °C)with LXE coil
Hold-in power consumption in VA 6.6…8.1 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil | 3.94…4.83 VA (at 20 °C)with LX4 coil | 4.5…7.0 VA, 50/60 Hz cos phi 0.5 (at 20 °C)with LXE coil | 2.5…4.0 VA (at 20 °C)with LXE coil
Maximum operating rate 2400 cyc/h 55 °C
Compatibility code LC1F
IP degree of protection IP2X front face with shrouds conforming to IEC 60529 | IP2X front face with shrouds conforming to VDE 0106
Protective treatment TH
Ambient air temperature for operation -40…60 °C
Ambient air temperature for storage -60…80 °C
Permissible ambient air temperature around the device 60…70 °C at Uc
Operating altitude 3000 m without derating
Mechanical robustness Vibrations contactor open: 2 Gn, 5...300 Hz | Vibrations contactor closed: 6 Gn, 5...300 Hz | Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) | Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms)
Height 170 mm
Width 163.5 mm
Depth 171 mm
Net weight 3.83 kg
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 22.000 cm
Package 1 Width 19.600 cm
Package 1 Length 24.000 cm
Package 1 Weight 3.588 kg
Unit Type of Package 2 P06
Number of Units in Package 2 18
Package 2 Height 75.000 cm
Package 2 Width 60.000 cm
Package 2 Length 80.000 cm
Package 2 Weight 74.000 kg
