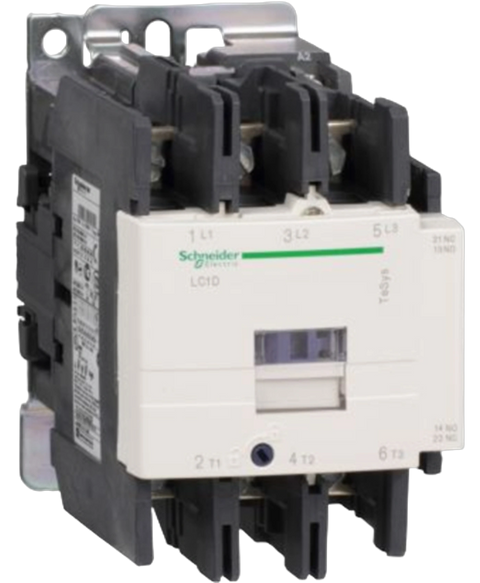

Schneider Electric LC1D95P7C
The LC1D95P7C contactor from Schneider Electric's TeSys series is suited for controlling resistive loads and motors. This model is rated for a maximum operational voltage of 690 VAC and can handle a nominal current of 95 A.
This Schneider Electric LC1D95P7C is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805616066.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | TeSys |
| Part Number | LC1D95P7C |
| Product Name | Contactor |
| Application | Resistive Load, Motor Control |
| No. of Poles | 3-pole |
| Operational Voltage | 690 VAC max. |
| Operational Line Frequency | 25 to 400 Hz |
| Rated Current | 95 A nominal |
| Control Voltage | 230 VAC |
| Control Voltage Line Frequency | 50/60 Hz |
| Power Rating (kW) | 45 kW max. |
| Power Rating (HP) | 60 HP max. |
| Pole Contact Configuration | Normally Open (NO) |
| Closing Time | 20 to 35 ms |
| Opening Time | 6 to 20 ms |
| No. of Auxiliary Contacts | 1 NO, 1 NC |
| Mounting Support | Plate, Rail |
| Brand | Schneider Electric |
