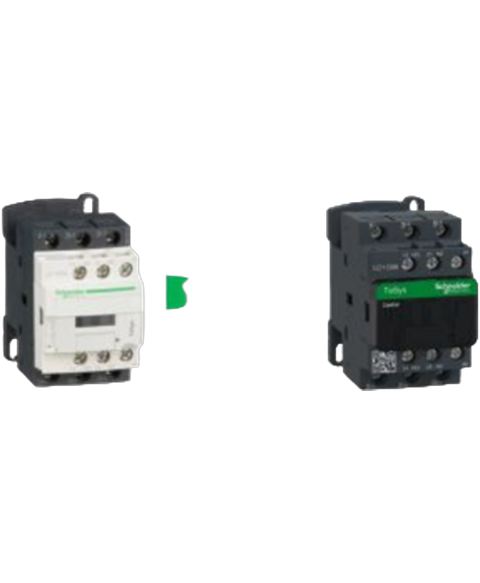

Schneider Electric LC1D65
Schneider LC1D65AB7 power contactor, 65A, 24VAC coil.
This Schneider Electric LC1D65 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805671246.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Coil Voltage (AC) | 24 V |
| Contact Current Rating | 65 A |
| Depth | 120 mm |
| Length | 122 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Number of Poles | 3 |
| Operating Supply Voltage | 600 V |
| Power Rating | 30 kW |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Throw Configuration | 3P |
| Width | 55 mm |
