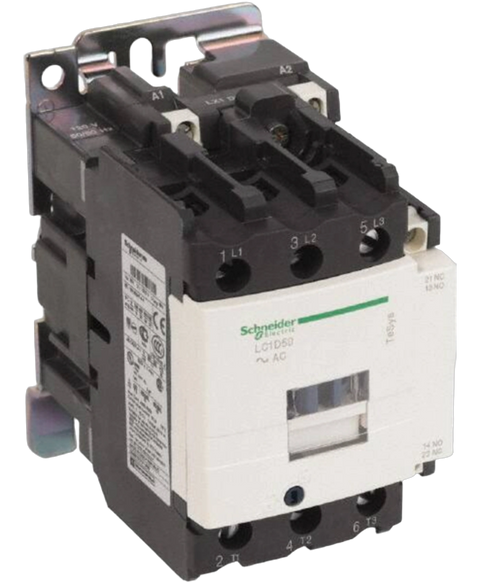

Schneider Electric LC1D50G7
Schneider Electric LC1D50G7 power contactor, 50A, 120VAC coil, 3-pole.
This Schneider Electric LC1D50G7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26895678656.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Case/Package | 120 |
| Coil Voltage (AC) | 120 V |
| Contact Current Rating | 50 A |
| Depth | 114 mm |
| Length | 75 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Mount | DIN Rail, Screw |
| Number of Poles | 3 |
| Power Rating | 33 kW |
| RoHS | Non-Compliant |
| Termination | Screw |
| Throw Configuration | 3PST |
