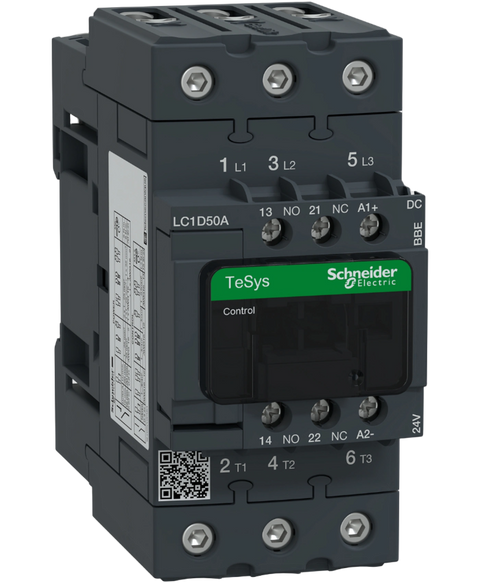

Schneider Electric LC1D50ABBE
TeSys D contactor 3P 50A AC-3 up to 440V coil 24V DC EverLink
This Schneider Electric LC1D50ABBE is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805638269.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$574.10
(inc. GST)
In Stock
| Range of product | TeSys Deca Advanced |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-3 | AC-3e | AC-1 | AC-4 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| [Ie] rated operational current | 80 A (at <60 °C) at <= 440 V AC-1 for power circuit | 50 A (at <60 °C) at <= 440 V AC-3 for power circuit | 50 A (at <60 °C) at <= 440 V AC-3e for power circuit |
| [Uc] control circuit voltage | 24 V DC |
| Motor power kW | 15 kW at 220/230 V AC 50/60 Hz (AC-3) | 22 kW at 380/400 V AC 50/60 Hz (AC-3) | 25 kW at 415 V AC 50/60 Hz (AC-3) | 30 kW at 440 V AC 50/60 Hz (AC-3) | 30 kW at 500 V AC 50/60 Hz (AC-3) | 33 kW at 660/690 V AC 50/60 Hz (AC-3) | 15 kW at 220/230 V AC 50/60 Hz (AC-3e) | 22 kW at 380/400 V AC 50/60 Hz (AC-3e) | 25 kW at 415 V AC 50/60 Hz (AC-3e) | 30 kW at 440 V AC 50/60 Hz (AC-3e) | 30 kW at 500 V AC 50/60 Hz (AC-3e) | 33 kW at 660/690 V AC 50/60 Hz (AC-3e) | 11 kW at 400 V AC 50/60 Hz (AC-4) |
| Motor power hp | 3 hp at 115 V AC 60 Hz for 1 phase motors | 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors | 15 hp at 200/208 V AC 60 Hz for 3 phases motors | 15 hp at 230/240 V AC 60 Hz for 3 phases motors | 40 hp at 460/480 V AC 60 Hz for 3 phases motors | 40 hp at 575/600 V AC 60 Hz for 3 phases motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 80 A (at 60 °C) for power circuit | 10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity | 900 A at 440 V for power circuit conforming to IEC 60947 | 140 A AC for signalling circuit conforming to IEC 60947-5-1 | 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 900 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 100 A - 1 s for signalling circuit | 120 A - 500 ms for signalling circuit | 140 A - 100 ms for signalling circuit | 84 A 40 °C - 10 min for power circuit | 208 A 40 °C - 1 min for power circuit | 400 A 40 °C - 10 s for power circuit | 810 A 40 °C - 1 s for power circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 | 100 A gG at <= 690 V coordination type 1 for power circuit | 100 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit |
| Power dissipation per pole | 9.6 W AC-1 | 3.7 W AC-3 | 3.7 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 10 Mcycles |
| Electrical durability | 1.8 Mcycles 42 A AC-3 at Ue <= 440 V | 0.5 Mcycles 80 A AC-1 at Ue <= 440 V | 1.8 Mcycles 42 A AC-3e at Ue <= 440 V |
| Control circuit type | DC DC low consumption |
| Coil technology | Built-in bidirectional peak limiting |
| Control circuit voltage limits | <= 0.1 Uc (-40…70 °C):drop-out DC | 0.8...1.2 Uc (-40…60 °C):operational DC | 1...1.2 Uc (60…70 °C):operational DC |
| Inrush power in W | 11.5 W (at 20 °C) |
| Hold-in power consumption in W | 0.5 W at 20 °C |
| Heat dissipation | 0.5 W |
| Operating time | 55...65 ms closing | 20...80 ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid | Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible without cable end | Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with cable end | Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid | Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible without cable end | Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with cable end | Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25…35 mm² hexagonal screw head 4 mm | Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm² hexagonal screw head 4 mm | Power circuit: 5 N.m - with screwdriver pozidriv No 2 | Control circuit: 1.7 N.m - with screwdriver pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 | type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact | 1.5 ms on energisation between NC and NO contact |
| Mounting support | Plate | Rail |
| Standards | EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | IEC 60335-1 |
| Product certifications | CCC | CSA | EAC | UL | KC | DNV-GL | LROS (Lloyds register of shipping) | UKCA |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat | conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C | 60…70 °C with derating |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) | Vibrations contactor closed (4 Gn, 5...300 Hz) | Shocks contactor open (10 Gn for 11 ms) | Shocks contactor closed (15 Gn for 11 ms) |
| Height | 122 mm |
| Width | 55 mm |
| Depth | 120 mm |
| Net weight | 0.997 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 cm |
| Package 1 Width | 13.700 cm |
| Package 1 Length | 15.200 cm |
| Package 1 Weight | 899.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 9.272 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 158.352 kg |
