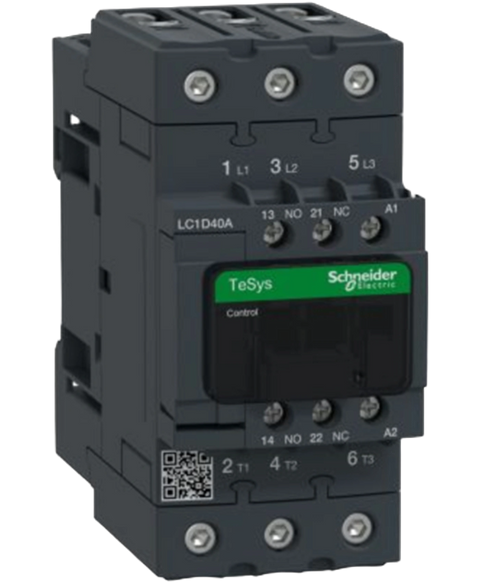

Schneider Electric LC1D40AP7C
The Schneider Electric LC1D40AP7C is a robust AC contractor designed for high-performance applications. With a current rating of 40A and a voltage capacity of 440V AC, it operates efficiently at a coil voltage of 230V AC, suitable for 50,60 Hz supply.
This Schneider Electric LC1D40AP7C is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26899270016.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Type | AC Contactor |
| Product Line | TeSys |
| Part Number | LC1D40AP7C |
| Current Rating | 40A |
| Voltage Rating | 440V AC |
| Coil Voltage | 230V AC, 50/60 Hz |
| Poles | 3 (3 NO) |
| Contact Configuration | 1NO + 1NC auxiliary contacts |
| Short Circuit Current Rating (SCCR) | Up to 100kA when used with appropriate circuit breakers or fuses |
| Operating Frequency | Up to 3600 cycles/hour |
| Operating Temperature | Up to 60°C |
| Mounting | DIN-rail or screw fixing |
| Certifications | UL, CSA, IEC, CCC, EAC, Marine |
| Compliance | RoHS/REACh |
| Brand | Schneider Electric |
