Schneider Electric LC1D25KUE
Product image for illustrative purposes only. Actual item may vary.
Schneider Electric logo

Schneider Electric LC1D25KUE

SKU: PL26926747409
MPN: LC1D25KUE

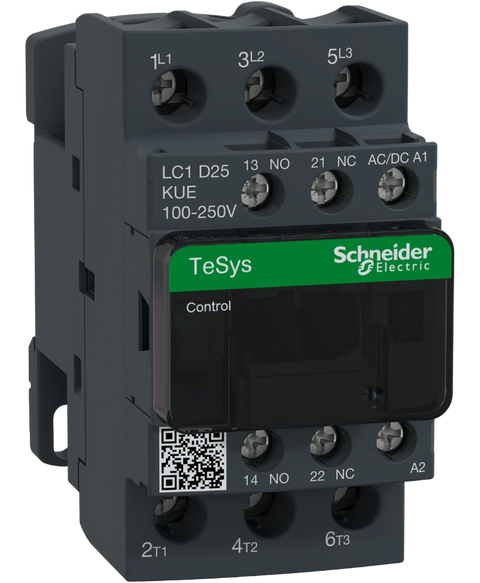

TeSys D contactor 3P 25A AC-3 up to 440V coil 100-250V AC,DC

This Schneider Electric LC1D25KUE is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26926747409.

Brand New - 12 Months Warranty
$338.78 (inc. GST)
In Stock
Range of product TeSys Deca Advanced
Product or component type Contactor
Device short name LC1D
Contactor application Motor control | Resistive load
Utilisation category AC-3 | AC-1 | AC-3e
Poles description 3P
[Ue] rated operational voltage Power circuit: <= 690 V AC 25...400 Hz
[Ie] rated operational current 25 A (at <60 °C) at <= 440 V AC-3 for power circuit | 40 A (at <60 °C) at <= 440 V AC-1 for power circuit | 25 A (at <60 °C) at <= 440 V AC-3e for power circuit
[Uc] control circuit voltage 100...250 V AC 50/60 Hz | 100...250 V DC
Motor power kW 5.5 kW at 220...230 V AC 50 Hz (AC-3) | 11 kW at 380...400 V AC 50 Hz (AC-3) | 11 kW at 415 V AC 50 Hz (AC-3) | 11 kW at 440 V AC 50 Hz (AC-3) | 15 kW at 500 V AC 50 Hz (AC-3) | 15 kW at 660...690 V AC 50 Hz (AC-3) | 5.5 kW at 220...230 V AC 50 Hz (AC-3e) | 11 kW at 380...400 V AC 50 Hz (AC-3e) | 11 kW at 415 V AC 50 Hz (AC-3e) | 11 kW at 440 V AC 50 Hz (AC-3e) | 15 kW at 500 V AC 50 Hz (AC-3e) | 15 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp 2 hp at 115 V AC 60 Hz for 1 phase motors | 3 hp at 230/240 V AC 60 Hz for 1 phase motors | 7.5 hp at 200/208 V AC 60 Hz for 3 phases motors | 7.5 hp at 230/240 V AC 60 Hz for 3 phases motors | 15 hp at 460/480 V AC 60 Hz for 3 phases motors | 20 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code LC1D
Pole contact composition 3 NO
Protective cover With
[Ith] conventional free air thermal current 10 A (at 60 °C) for signalling circuit | 40 A (at 60 °C) for power circuit
Irms rated making capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1 | 250 A DC for signalling circuit conforming to IEC 60947-5-1 | 450 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity 450 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 100 A - 1 s for signalling circuit | 120 A - 500 ms for signalling circuit | 140 A - 100 ms for signalling circuit | 50 A 40 °C - 10 min for power circuit | 120 A 40 °C - 1 min for power circuit | 240 A 40 °C - 10 s for power circuit | 380 A 40 °C - 1 s for power circuit
Associated fuse rating 10 A gG for signalling circuit conforming to IEC 60947-5-1 | 63 A gG at <= 690 V coordination type 1 for power circuit | 40 A gG at <= 690 V coordination type 2 for power circuit
Average impedance 2 mOhm - Ith 40 A 50 Hz for power circuit
Power dissipation per pole 3.2 W AC-1 | 1.25 W AC-3 | 1.25 W AC-3e
[Ui] rated insulation voltage Power circuit: 690 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947
Safety reliability level B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability 15 Mcycles
Electrical durability 2 Mcycles 21 A AC-3 at Ue <= 440 V | 0.9 Mcycles 40 A AC-1 at Ue <= 440 V | 2 Mcycles 21 A AC-3e at Ue <= 440 V
Control circuit type AC/DC at 50/60 Hz AC/DC electronic
Coil technology Built-in bidirectional peak limiting
Control circuit voltage limits <= 0.1 Uc (-40…70 °C):drop-out AC/DC | 0.85...1.1 Uc (-40…60 °C):operational AC/DC | 1...1.1 Uc (60…70 °C):operational AC/DC
Inrush power in VA 25 VA 50/60 Hz (at 20 °C)
Inrush power in W 18 W (at 20 °C)
Hold-in power consumption in VA 1.6 VA 50/60 Hz (at 20 °C)
Hold-in power consumption in W 1.1 W at 20 °C
Heat dissipation 1.1 W at 50/60 Hz
Operating time 45...55 ms closing | 20...90 ms opening
Maximum operating rate 3600 cyc/h at 60 °C
Connections - terminals Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid | Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end | Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end | Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end | Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end | Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid | Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid
Tightening torque Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M4 | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition 1 NO + 1 NC
Auxiliary contacts type type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 | type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency 25...400 Hz
Minimum switching voltage 17 V for signalling circuit
Minimum switching current 5 mA for signalling circuit
Insulation resistance > 10 MOhm for signalling circuit
Non-overlap time 1.5 ms on de-energisation between NC and NO contact | 1.5 ms on energisation between NC and NO contact
Mounting support Plate | Rail
Standards EN/IEC 60947-4-1 | EN/IEC 60947-5-1 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | IEC 60335-1
Product certifications CCC | CSA | EAC | UL | KC | DNV-GL | LROS (Lloyds register of shipping) | UKCA
IP degree of protection IP20 front face conforming to IEC 60529
Climatic withstand conforming to IACS E10 exposure to damp heat | conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device -40…60 °C | 60…70 °C with derating
Operating altitude 0...3000 m
Fire resistance 850 °C conforming to IEC 60695-2-1
Flame retardance V1 conforming to UL 94
Mechanical robustness Vibrations contactor open (2 Gn, 5...300 Hz) | Vibrations contactor closed (4 Gn, 5...300 Hz) | Shocks contactor closed (15 Gn for 11 ms) | Shocks contactor open (8 Gn for 11 ms)
Height 85 mm
Width 45 mm
Depth 92 mm
Net weight 0.433 kg
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 9.500 cm
Package 1 Length 11.800 cm
Package 1 Weight 454.000 g
Unit Type of Package 2 S02
Number of Units in Package 2 15
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 7.110 kg
