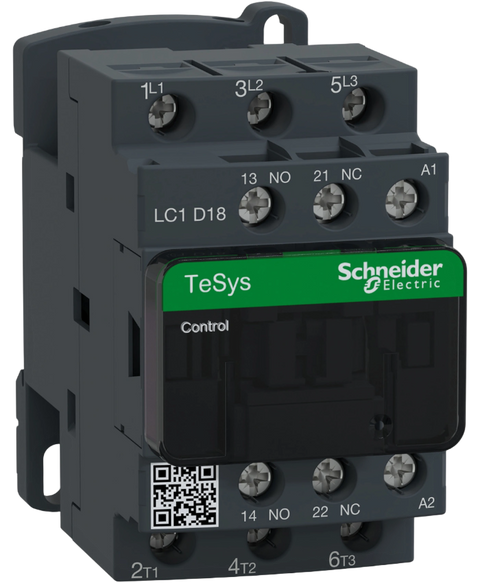

Schneider Electric LC1D18-G7
Schneider LC1D18G7 power contactor, 18A, 120VAC coil.
This Schneider Electric LC1D18-G7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26960442647.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$68.03
(inc. GST)
In Stock
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load | Motor control |
| Utilisation category | AC-1 | AC-4 | AC-3 | AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz | Power circuit: <= 300 V DC |
| [Ie] rated operational current | 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Motor power kW | 4 kW at 220...230 V AC 50/60 Hz (AC-3) | 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) | 9 kW at 415...440 V AC 50/60 Hz (AC-3) | 10 kW at 500 V AC 50/60 Hz (AC-3) | 10 kW at 660...690 V AC 50/60 Hz (AC-3) | 4 kW at 400 V AC 50/60 Hz (AC-4) | 4 kW at 220...230 V AC 50/60 Hz (AC-3e) | 7.5 kW at 380...400 V AC 50/60 Hz (AC-3e) | 9 kW at 415...440 V AC 50/60 Hz (AC-3e) | 10 kW at 500 V AC 50/60 Hz (AC-3e) | 10 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Motor power hp | 1 hp at 115 V AC 50/60 Hz for 1 phase motors | 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors | 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors | 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors | 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors | 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit | 32 A (at 60 °C) for power circuit |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 | 250 A DC for signalling circuit conforming to IEC 60947-5-1 | 300 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 300 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 145 A 40 °C - 10 s for power circuit | 240 A 40 °C - 1 s for power circuit | 40 A 40 °C - 10 min for power circuit | 84 A 40 °C - 1 min for power circuit | 100 A - 1 s for signalling circuit | 120 A - 500 ms for signalling circuit | 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 | 50 A gG at <= 690 V coordination type 1 for power circuit | 35 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 2.5 mOhm - Ith 32 A 50 Hz for power circuit |
| Power dissipation per pole | 2.5 W AC-1 | 0.8 W AC-3 | 0.8 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to IEC 60947-4-1 | Power circuit: 600 V CSA certified | Power circuit: 600 V UL certified | Signalling circuit: 690 V conforming to IEC 60947-1 | Signalling circuit: 600 V CSA certified | Signalling circuit: 600 V UL certified |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 15 Mcycles |
| Electrical durability | 1.65 Mcycles 18 A AC-3 at Ue <= 440 V | 1 Mcycles 32 A AC-1 at Ue <= 440 V | 1.65 Mcycles 18 A AC-3e at Ue <= 440 V |
| Control circuit type | AC at 50/60 Hz |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits | 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz | 0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz | 0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz | 1...1.1 Uc (60…70 °C):operational AC 50/60 Hz |
| Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 20 °C) | 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 20 °C) | 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Operating time | 12...22 ms closing | 4...19 ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end | Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end | Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end | Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end | Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end | Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end | Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end |
| Tightening torque | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 | Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 | type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact | 1.5 ms on energisation between NC and NO contact |
| Mounting support | Plate | Rail |
| Standards | CSA C22.2 No 14 | EN 60947-4-1 | EN 60947-5-1 | IEC 60947-4-1 | IEC 60947-5-1 | UL 60947-4-1 | IEC 60335-1:Clause 30.2 | IEC 60335-2-40:Annex JJ | UL 60335-2-40:Annex JJ | CSA C22.2 No 60947-4-1 |
| Product certifications | UL | CCC | CSA | Marine | UKCA | EAC | CB Scheme |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat | conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C | 60…70 °C with derating |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) | Vibrations contactor closed (4 Gn, 5...300 Hz) | Shocks contactor open (10 Gn for 11 ms) | Shocks contactor closed (15 Gn for 11 ms) |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 86 mm |
| Net weight | 0.33 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 9.500 cm |
| Package 1 Length | 12.000 cm |
| Package 1 Weight | 364.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.350 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 256 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 109.600 kg |
