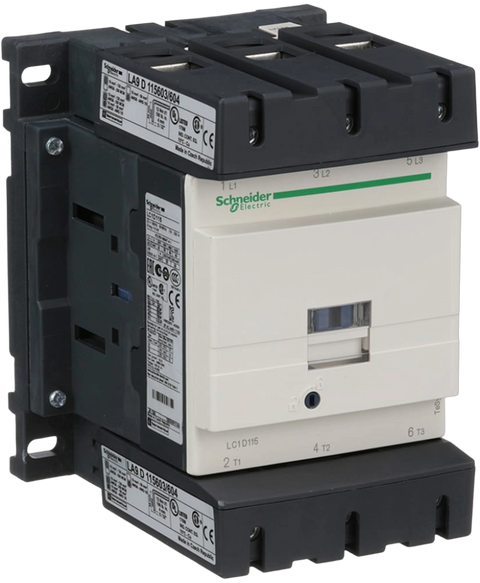

Schneider Electric LC1D115G7
Contactor, TeSys Deca, 3P(3NO), AC-3,AC-3e, <=440V, 115A, 120V AC 50,60Hz coil, screw clamp terminals
This Schneider Electric LC1D115G7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26801380932.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Approvals | CCC, CSA, EN, IEC, UL |
| Case/Package | 120 |
| Coil Voltage (AC) | 120 V |
| Contact Current Rating | 115 A |
| Depth | 132 mm |
| Length | 120 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Operating Supply Voltage | 1 kV |
| Power Rating | 55 kW |
| REACH SVHC | Unknown |
| RoHS | Compliant |
| Termination | Screw |
| Throw Configuration | 3PST |
| Type | General Purpose |
| Voltage Rating (AC) | 1 kV |
| Voltage Rating (DC) | 300 V |
| Width | 127 mm |
