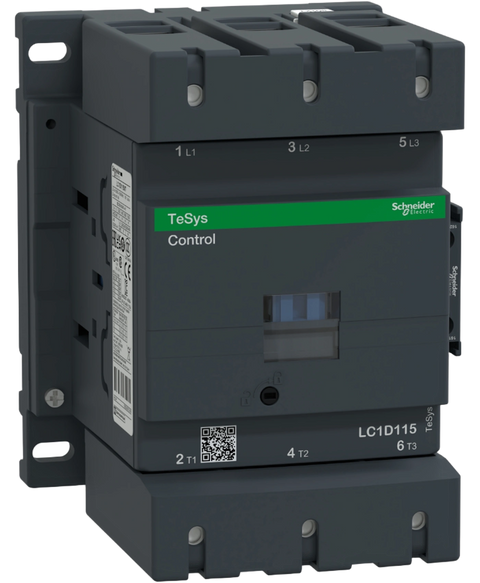

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1D115E7
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 115 A - 48 V AC 50,60 Hz coil
This Schneider Electric LC1D115E7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26926667219.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$754.13
(inc. GST)
In Stock
| Range | TeSys |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-1 | AC-4 | AC-3 | AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 1000 V AC 25...400 Hz | Power circuit: <= 300 V DC |
| [Ie] rated operational current | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit | 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Motor power kW | 30 kW at 220...230 V AC 50/60 Hz (AC-3) | 55 kW at 380...400 V AC 50/60 Hz (AC-3) | 59 kW at 415...440 V AC 50/60 Hz (AC-3) | 75 kW at 500 V AC 50/60 Hz (AC-3) | 80 kW at 660...690 V AC 50/60 Hz (AC-3) | 65 kW at 1000 V AC 50/60 Hz (AC-3) | 18.5 kW at 400 V AC 50/60 Hz (AC-4) | 30 kW at 220...230 V AC 50/60 Hz (AC-3e) | 55 kW at 380...400 V AC 50/60 Hz (AC-3e) | 59 kW at 415...440 V AC 50/60 Hz (AC-3e) | 75 kW at 500 V AC 50/60 Hz (AC-3e) | 80 kW at 660...690 V AC 50/60 Hz (AC-3e) | 65 kW at 1000 V AC 50/60 Hz (AC-3e) |
| Motor power hp | 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors | 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors | 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors | 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 200 A (at 60 °C) for power circuit |
| Irms rated making capacity | 1260 A at 440 V for power circuit conforming to IEC 60947 | 140 A AC for signalling circuit conforming to IEC 60947-5-1 | 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 250 A 40 °C - 10 min for power circuit | 550 A 40 °C - 1 min for power circuit | 950 A 40 °C - 10 s for power circuit | 1100 A 40 °C - 1 s for power circuit | 100 A - 1 s for signalling circuit | 120 A - 500 ms for signalling circuit | 140 A - 100 ms for signalling circuit |
| Associated fuse rating | 250 A gG at <= 690 V coordination type 1 for power circuit | 200 A gG at <= 690 V coordination type 2 for power circuit | 10 A gG for signalling circuit |
| Average impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Power dissipation per pole | 24 W AC-1 | 7.9 W AC-3 | 7.9 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified | Power circuit: 600 V UL certified | Power circuit: 1000 V conforming to IEC 60947-4-1 | Signalling circuit: 690 V conforming to IEC 60947-1 | Signalling circuit: 600 V CSA certified | Signalling circuit: 600 V UL certified |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1 | B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 8 Mcycles |
| Electrical durability | 0.8 Mcycles 200 A AC-1 at Ue <= 440 V | 0.95 Mcycles 115 A AC-3 at Ue <= 440 V | 0.95 Mcycles 115 A AC-3e at Ue <= 440 V |
| Control circuit type | AC at 50/60 Hz standard |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 0.3...0.5 Uc (-40…70 °C):drop-out AC 50/60 Hz | 0.8...1.15 Uc (-40…55 °C):operational AC 50/60 Hz | 1...1.15 Uc (55…70 °C):operational AC 50/60 Hz |
| Inrush power in VA | 280…350 VA 60 Hz cos phi 0.8 (at 20 °C) | 280…350 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Hold-in power consumption in VA | 2…18 VA 60 Hz cos phi 0.3 (at 20 °C) | 2…18 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 3…8 W at 50/60 Hz |
| Operating time | 6...20 ms opening | 20...50 ms closing |
| Maximum operating rate | 2400 cyc/h at 60 °C |
| Connections - terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end | Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end | Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end | Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end | Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end | Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end | Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end | Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end | Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 | Power circuit: 12 N.m - on connector hexagonal screw head 4 mm | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 | type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact | 1.5 ms on energisation between NC and NO contact |
| Mounting support | Plate | Rail |
| Standards | CSA C22.2 No 14 | EN 60947-4-1 | IEC 60947-4-1 | IEC 60335-1:Clause 30.2 | IEC 60335-2-40:Annex JJ | UL 60335-2-40:Annex JJ | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | JIS C8201-4-1 |
| Product certifications | UL | CSA | CCC | UKCA | CE | EAC | Marine |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat | conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C | 60…70 °C with derating |
| Operating altitude | 0...3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) | Vibrations contactor closed (4 Gn, 5...300 Hz) | Shocks contactor closed (15 Gn for 11 ms) | Shocks contactor open (6 Gn for 11 ms) |
| Height | 158 mm |
| Width | 120 mm |
| Depth | 136 mm |
| Net weight | 2.5 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 20.000 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 22.000 cm |
| Package 1 Weight | 2.475 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 79.825 kg |
