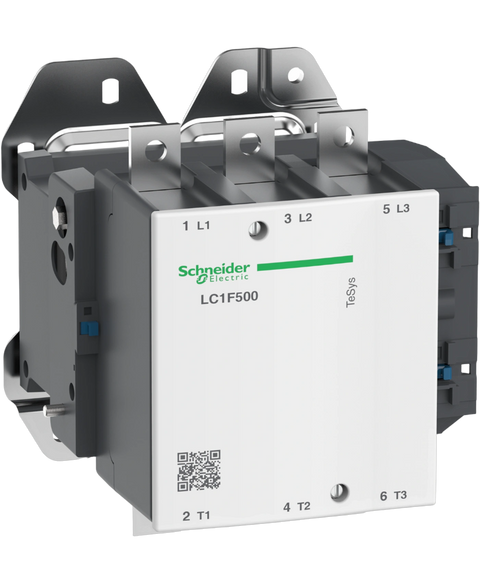

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric LC1-F500M7
Schneider Electric LC1F500M7 Contactor, 3-Pole, 500A, 600VAC, 220V Coil
This Schneider Electric LC1-F500M7 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Contactors range and is referenced internally as PartLogic SKU PL26805677828.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$3,080.35
(inc. GST)
In Stock
| Range | TeSys |
| Range of product | TeSys F |
| Product or component type | Contactor |
| Device short name | LC1F |
| Contactor application | Motor control | Resistive load |
| Utilisation category | AC-1 | AC-4 | AC-3 |
| Poles description | 3P |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz | <= 460 V DC |
| [Uc] control circuit voltage | 220 V AC 40...400 Hz |
| [Ie] rated operational current | 700 A (at <40 °C) at <= 440 V AC AC-1 | 500 A (at <55 °C) at <= 440 V AC AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| Rated breaking capacity | 4000 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 4200 A 40 °C - 10 s | 3200 A 40 °C - 30 s | 2400 A 40 °C - 1 min | 1500 A 40 °C - 3 min | 1200 A 40 °C - 10 min |
| Associated fuse rating | 500 A aM at <= 440 V | 800 A gG at <= 440 V |
| Average impedance | 0.18 mOhm - Ith 700 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 | 1500 V conforming to VDE 0110 group C |
| Power dissipation per pole | 88 W AC-1 | 45 W AC-3 |
| Overvoltage category | III |
| power pole contact composition | 3 NO |
| Motor power kW | 250 kW at 380...400 V AC 50/60 Hz (AC-3) | 280 kW at 415 V AC 50/60 Hz (AC-3) | 295 kW at 440 V AC 50/60 Hz (AC-3) | 355 kW at 500 V AC 50/60 Hz (AC-3) | 335 kW at 660...690 V AC 50/60 Hz (AC-3) | 335 kW at 1000 V AC 50/60 Hz (AC-3) | 147 kW at 220...230 V AC 50/60 Hz (AC-3) | 80 kW at 400 V AC 50/60 Hz (AC-4) |
| Control circuit voltage limits | Operational: 0.85...1.1 Uc 40...400 Hz (at 55 °C) | Drop-out: 0.3...0.5 Uc 40...400 Hz (at 55 °C) |
| Mechanical durability | 10 Mcycles |
| Inrush power in VA | 1100 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Hold-in power consumption in VA | 18 VA, 40...400 Hz cos phi 0.9 (at 20 °C) |
| Maximum operating rate | 2400 cyc/h 55 °C |
| Operating time | 40...65 ms closing | 100...170 ms opening |
| Connections - terminals | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end | Power circuit: bar 2 cable(s) - busbar cross section: 40 x 5 mm | Power circuit: lugs-ring terminals 2 cable(s) 240 mm² | Power circuit: bolted connection |
| Tightening torque | Control circuit: 1.2 N.m | Power circuit: 35 N.m |
| Mounting support | Plate |
| Heat dissipation | 18 W |
| motor power range | 250…500 kW at 380…440 V 3 phases | 110…220 kW at 380…440 V 3 phases | 110…220 kW at 200…240 V 3 phases | 250…500 kW at 480…500 V 3 phases |
| Motor starter type | Direct on-line contactor |
| Contactor coil voltage | 220 V AC standard |
| Standards | EN 60947-4-1 | IEC 60947-1 | EN 60947-1 | JIS C8201-4-1 | IEC 60947-4-1 |
| Product certifications | CSA | CB | RMRoS | ABS | LROS (Lloyds register of shipping) | UL | RINA | BV | DNV | UKCA |
| Compatibility code | LC1F |
| Control circuit type | AC at 40...400 Hz |
| IP degree of protection | IP20 front face with shrouds conforming to IEC 60529 | IP20 front face with shrouds conforming to VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -5…55 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…70 °C |
| Height | 238 mm |
| Width | 233 mm |
| Depth | 232 mm |
| Operating altitude | 3000 m without derating |
| Net weight | 11.35 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 29.000 cm |
| Package 1 Length | 33.500 cm |
| Package 1 Weight | 11.646 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 103.188 kg |
