Schneider Electric LAG8N113P

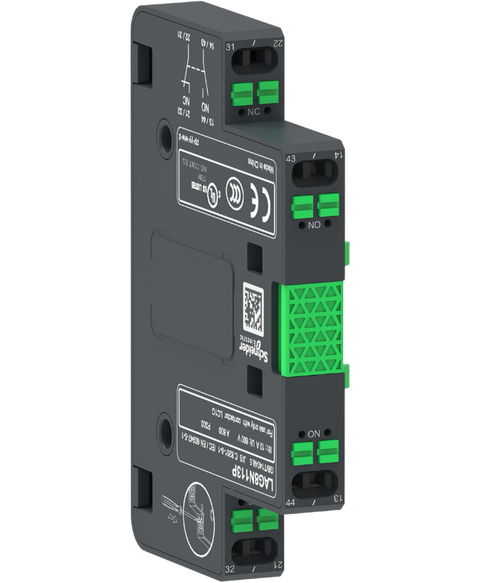

Auxiliary contact block, TeSys Giga, 1NO + 1NC, lateral face side mounting, push-in terminals L1,R1
This Schneider Electric LAG8N113P is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26805662022.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range compatibility | TeSys G LC1G |
| Range of product | TeSys G |
| Range | TeSys |
| Device short name | LAG8N |
| Product or component type | Auxiliary contact block |
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 1 NO + 1 NC |
| Connections - terminals | Screw clamp terminals0.75…2.5 mm²solid stranded without cable end | Screw clamp terminals0.75…2.5 mm²flexible with cable end |
| Mounting location | Side |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-5-1 | 600 V - certifications CSA | 600 V - certifications UL |
| [Ue] rated operational voltage | 600 V AC 25...400 Hz |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 | 250 A DC conforming to IEC 60947-5-1 |
| Permissible short-time rating | 100 A 60 °C 1 s | 120 A 60 °C 500 ms | 140 A 60 °C 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 8 Mcycles |
| Minimum switching current | 1 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact | 1.5 ms on energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Height | 55.8 mm |
| Width | 15.4 mm |
| Depth | 84.8 mm |
| Net weight | 0.05 kg |
| Standards | EN/IEC 60947-5-1 | UL 60947-5-1 | CSA C22.2 No 60947-5-1 | GB 14048.5 | IEC 60335-1:Clause 30.2 | IEC 60335-2-40:Annex JJ | UL 60335-1 | UL 60335-2-40:Annex JJ |
| Product certifications | CB Scheme | CCC | cULus | CE | UKCA |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 9.500 cm |
| Package 1 Weight | 60.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 64 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.979 kg |
