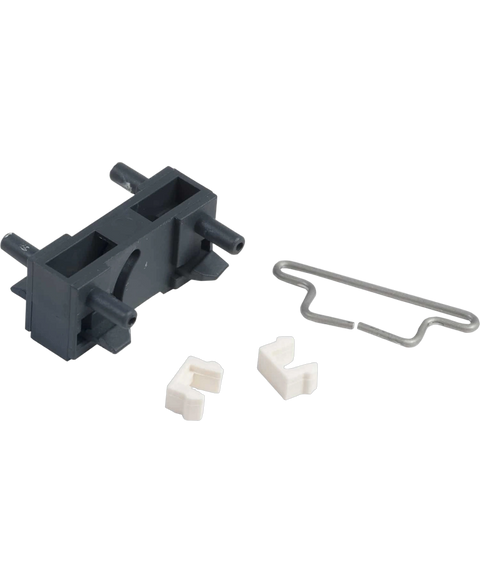

Schneider Electric LAD9V2
Mechanical interlock, TeSys D contactors LC1D09-D38 LC1DT20-DT40
This Schneider Electric LAD9V2 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26801436273.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | TeSys Deca |
| Range | TeSys |
| Device short name | LAD9 |
| Product or component type | Mechanical interlock |
| Accessory / separate part category | Interlocking accessory |
| Interlocking type | Mechanical |
| Poles description | 3P | 4P |
| Electrical circuit type | Reversing | Changeover |
| Range compatibility | TeSys TeSys D contactor |
| Product compatibility | LC1D09 | LC1D12 | LC1D18 | LC1D25 | LC1D32 | LC1D38 | LC1DT20 | LC1DT25 | LC1DT32 | LC1DT40 |
| Net weight | 0.04 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 11.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.500 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.200 cm |
| Package 2 Weight | 138.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 140 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.359 kg |
