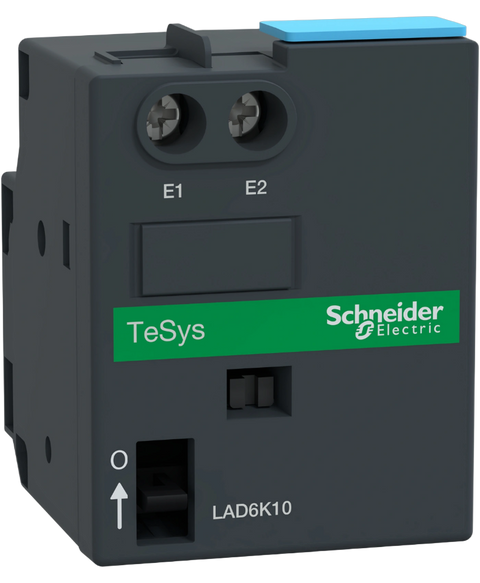

Schneider Electric LAD6K10M
CONTACTOR MECH. LATCH CONTACT BLOCK IEC
This Schneider Electric LAD6K10M is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26805536463.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Mechanical latch block |
| Product compatibility | LC1D09...D38 AC/DC | LC1DT20...DT40 AC/DC | LC1D40A...D80A 3 phases AC/DC | LC1DT60A 3 phases + neutral AC/DC | LC1DT80A 3 phases + neutral AC/DC |
| [Uc] control circuit voltage | 220/240 V AC 50/60 Hz | 220/240 V DC |
| Mounting location | Front side |
| Tripping control | Electrical | Manual |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Power required in VA | 25 for AC circuit |
| Power required in W | 30 W for DC circuit |
| Mechanical durability | 500000 cycles |
| Maximum operating rate | 1200 cyc/h |
| On-load factor | 10 % |
| Net weight | 0.07 kg |
| Product certifications | UL | CSA |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 5.000 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 98.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.270 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1024 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 112.640 kg |
