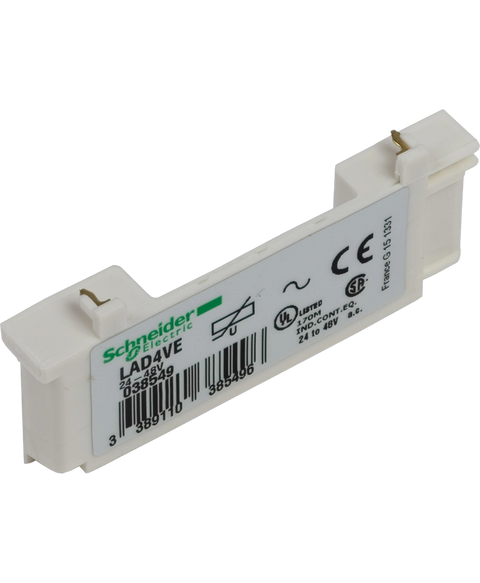

Schneider Electric LAD4VE
TeSys D - suppressor module - varistor - 24...48 V AC
This Schneider Electric LAD4VE is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26897349071.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LAD4 |
| Product or component type | Suppressor module |
| Product compatibility | 3P LC1D09...D38 | 4P LC1DT20...DT40 | 4P LC1D098...D258 | CAD32, CAD50 |
| Mounting location | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front | Front |
| Mounting mode | By clips |
| Suppressor technology | Varistor (peak limiting) |
| [Uc] control circuit voltage | 24...48 V AC |
| Maximum peak voltage | 2 Uc |
| Net weight | 0.012 kg |
| Standards | IEC 60947-5-1 | EN 60947-5-1 | CSA C22.2 No 60947-5-1 | UL 60947-5-1 | GB/T 14048.5 |
| Product certifications | UL | CSA |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.100 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 13.700 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.169 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 38.980 kg |
