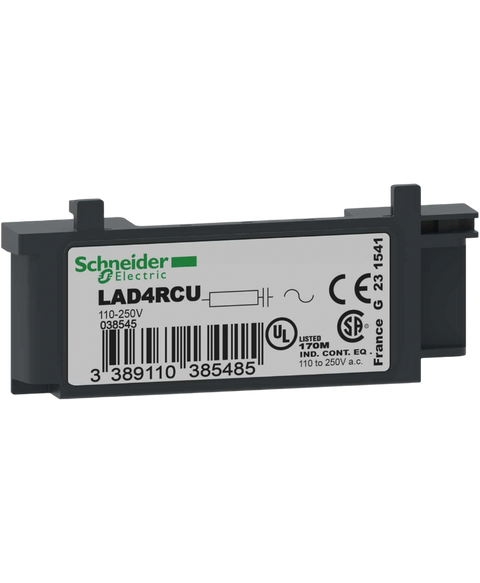

Schneider Electric LAD4RCU
RC Transient Suppressor 110 TO 250 VAC
This Schneider Electric LAD4RCU is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26801445787.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LAD4 |
| Product or component type | Suppressor module |
| Product compatibility | 3P LC1D09...D38 | 4P LC1DT20...DT40 | 4P LC1D098...D258 | CAD32, CAD50 |
| Mounting location | Side |
| Mounting mode | By clips |
| Suppressor technology | RC circuit |
| [Uc] control circuit voltage | 110...250 V AC |
| Maximum peak voltage | 3 Uc |
| Net weight | 0.012 kg |
| Standards | IEC 60947-5-1 | EN 60947-5-1 | CSA C22.2 No 60947-5-1 | UL 60947-5-1 | GB/T 14048.5 |
| Product certifications | UL | CSA |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.100 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 14.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.207 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 48.539 kg |
