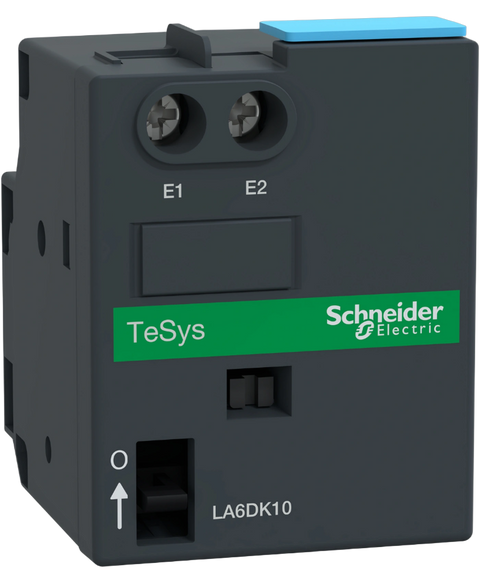

Schneider Electric LA6DK10M
auxiliary latch block TeSys D - 220...240 V DC,AC 50...60 Hz
This Schneider Electric LA6DK10M is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26911499368.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product or component type | Mechanical latch block |
| Product compatibility | LC1D40 3 phases + neutral AC | LP1D40 3 phases + neutral DC | LP1D65 3 phases + neutral DC | LC1D65 3 phases + neutral AC |
| [Uc] control circuit voltage | 220/240 V AC 50/60 Hz | 220/240 V DC |
| Mounting location | Front side |
| Tripping control | Electrical | Manual |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-5-1 |
| Power required in VA | 25 for AC circuit |
| Power required in W | 30 W for DC circuit |
| Mechanical durability | 500000 cycles |
| Maximum operating rate | 1200 cyc/h |
| On-load factor | 10 % |
| Net weight | 0.07 kg |
| Product certifications | CSA | UL |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.600 cm |
| Package 1 Width | 6.500 cm |
| Package 1 Length | 5.000 cm |
| Package 1 Weight | 98.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.356 kg |
