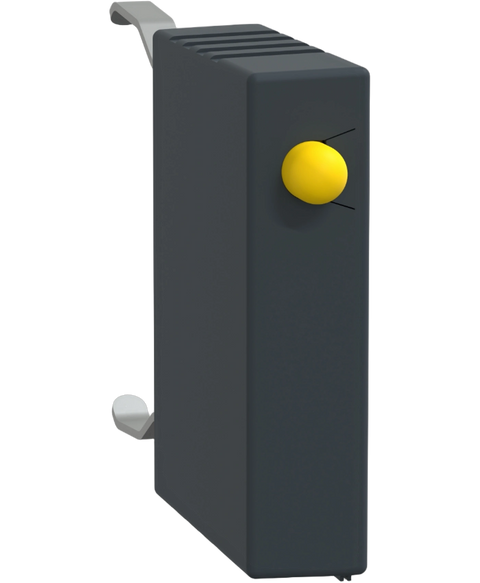

Schneider Electric LA4KC1B
TeSys K - Suppressor module - bidirectional peak limiting diode - 12...24 V
This Schneider Electric LA4KC1B is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26805523542.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LA4K |
| Product or component type | Suppressor module |
| Product compatibility | LP1K | LP4K | CA3K |
| Mounting location | Front side |
| Mounting mode | Clip-on |
| Suppressor technology | Bidirectional peak limiting diode |
| [Uc] control circuit voltage | 12...24 V DC |
| Maximum peak voltage | 2 Uc |
| Local signalling | LED |
| Quantity per set | Set of 5 |
| Height | 26 mm |
| Width | 6 mm |
| Depth | 22 mm |
| Net weight | 0.01 kg |
| Standards | UL 60947-5-1 | CSA C22.2 No 60947-5-1 | EN/IEC 60947-5-1 |
| Product certifications | UL | CSA | CE | UKCA |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Protective treatment | TC conforming to IEC 60068 | TC conforming to DIN 50016 |
| Ambient air temperature for operation | -25…50 °C |
| Ambient air temperature for storage | -50…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.800 cm |
| Package 1 Width | 2.800 cm |
| Package 1 Length | 4.200 cm |
| Package 1 Weight | 4.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 2.800 cm |
| Package 2 Width | 5.200 cm |
| Package 2 Length | 4.300 cm |
| Package 2 Weight | 28.000 g |
| Unit Type of Package 3 | S01 |
| Number of Units in Package 3 | 420 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.657 kg |
