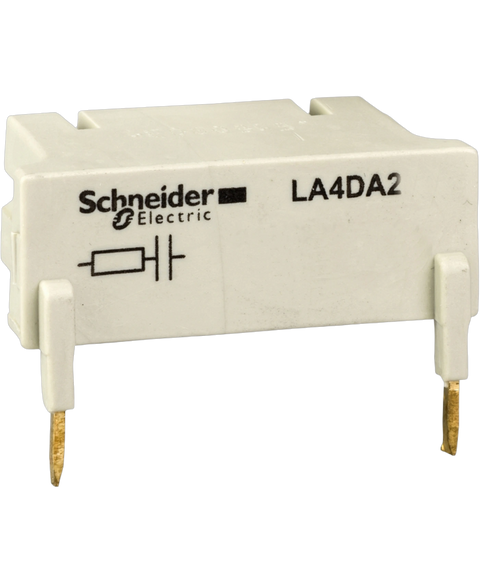

Schneider Electric LA4DA2U
TeSys D - suppressor module - RC circuit - 110...240 V AC
This Schneider Electric LA4DA2U is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Accessories range and is referenced internally as PartLogic SKU PL26805655668.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Device short name | LA4D |
| Product or component type | Suppressor module |
| Product compatibility | 3P LC1D80...D150 | 4P LC1D80004...D115004 | 4P LC1D40008...D80008 |
| Mounting location | Top |
| Mounting mode | By screws |
| Suppressor technology | RC circuit |
| [Uc] control circuit voltage | 110...240 V AC 50/60 Hz |
| Maximum peak voltage | 3 Uc |
| Net weight | 0.018 kg |
| Standards | IEC 60947-5-1 | EN 60947-5-1 | UL 60947-5-1 | CSA C22.2 No 60947-5-1 | GB/T 14048.5 |
| Product certifications | UL | CSA |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 4.200 cm |
| Package 1 Length | 2.700 cm |
| Package 1 Weight | 22.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 78 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 1.870 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2496 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 70.612 kg |
