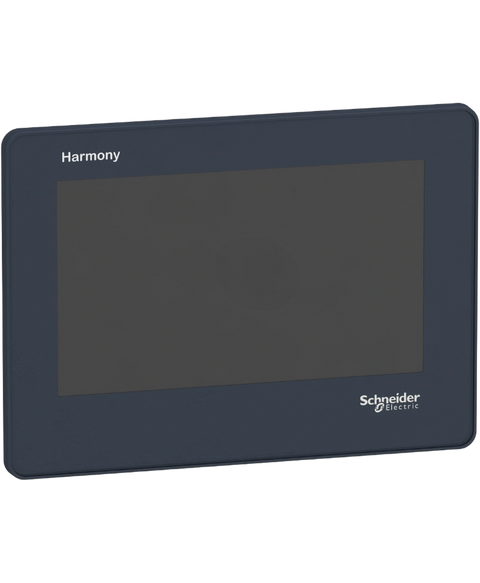

Schneider Electric HMISTO735
4.3 wide screen touch panel, Ethernet
This Schneider Electric HMISTO735 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26897342961.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert |
| Processor name | ARM926EJ-S |
| Display size | 4.3 inch |
| Display type | Colour TFT LCD |
| Display colour | 65536 colours |
| Display resolution | 480 x 272 pixels |
| Touch panel | Analogue |
| Backlight lifespan | 50000 hours with white |
| Brightness | 16 levels via touch panel |
| Character font | ASCII (European characters) | Cyrillic | Taiwanese (traditional Chinese) | Chinese (simplified Chinese) | Japanese (ANK, Kanji) | Korean |
| [Us] rated supply voltage | 12...24 V DC - 10...20 % |
| Power consumption in W | 8.1 W |
| Number of pages | 8999 |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Back up of data 512 KB | Application memory 26 MB |
| Integrated connection type | 1 USB 2.0 type mini B | 1 USB 2.0 type A | 1 Ethernet TCP/IP - RJ45 |
| Supply | External source |
| Realtime clock | With RTC-battery set optional |
| Downloadable protocols | Modbus TCP | Modbus | Third party protocols |
| Range compatibility | Omron | MitsubishI | Siemens | Allen-Bradley |
| Fixing mode | By 2 installation fasteners, mounting on 1.5 to 6 mm thick panel |
| Enclosure material | PPT |
| Front material | Plastic |
| Cut-out dimensions | 77.5 x 112.5 mm | 66 x 105 mm with mounting adaptor |
| Height | 90.4 mm |
| Width | 124.9 mm |
| Depth | 38.8 mm |
| Net weight | 0.22 kg |
| Standards | UL 61010-2-201 | EN 61131-2 | EN 61000-6-2 | EN 61000-6-4 | CSA C22.2 No 213 | CSA C22.2 No 142 | UL 61010-1 | ANSI/ISA 12.12.01 |
| Product certifications | CE | C-Tick | ATEX zone 2/22 | KCC | UL | cUL | UKCA |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | 2000 m |
| IP degree of protection | IP65f (front panel) | IP20 (rear panel) |
| NEMA degree of protection | NEMA 4X/13 front panel (indoor use) |
| Shock resistance | 15 gn for 11 ms conforming to IEC 61131-2 |
| Vibration resistance | 1 gn (f = 5…150 Hz) conforming to IEC 61131-2 | 3.5 mm constant amplitude (f = 5…150 Hz) conforming to IEC 61131-2 |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz) | Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2 | Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.200 cm |
| Package 1 Width | 13.800 cm |
| Package 1 Length | 18.600 cm |
| Package 1 Weight | 534.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.840 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 110.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 178.440 kg |
