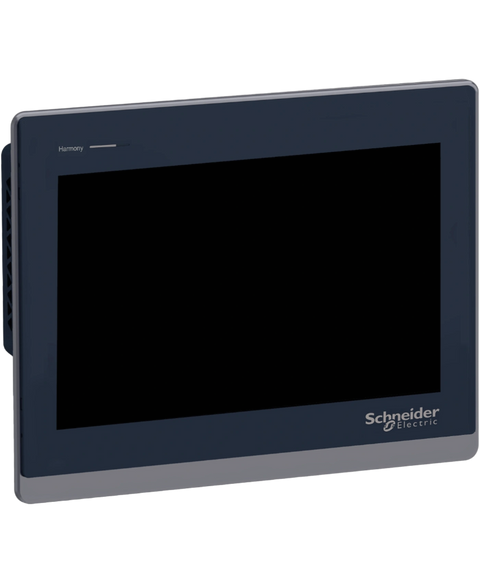

Schneider Electric HMIST6500
10W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC
This Schneider Electric HMIST6500 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805668287.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,635.85
(inc. GST)
In Stock
| Range of product | Harmony ST6 |
| Product or component type | Touch panel screen |
| Processor name | ARM Cortex-A8 |
| Memory description | 1 GB device memory | 512 KB backup memory | 128 MB user data memory |
| Display size | 10 inch |
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 1024 x 600 pixels WSVGA |
| Touch panel | Single touch analogue resistive |
| Backlight lifespan | 50000 hours with white |
| Brightness | 16 levels |
| Character font | ASCII | ASCII (European characters) | Chinese (simplified Chinese) | Japanese (ANK, Kanji) | Katakana | Korean | Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| Power consumption in W | 12.6 W |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for offline | Status LED green, steady for operating | Status LED green, flashing for operating | Status LED green, faded for stand-by | Status LED orange, flashing for software starting up | Status LED red, steady for power supply (ON) | Status LED red, flashing for operating | Status LED red, off for power supply (OFF) |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C (rate: 2400...115200 bps)bottom | 1 COM2 serial link - female RJ45 - RS485 (rate: 2400...115200 bps)back | COM2 serial link (rate: 2400...187500 bps)back | 1 USB 2.0 type Abottom | 1 USB 2.0 type micro B | 2 Ethernet |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C | Built-in 10...90 % RH |
| Downloadable protocols | Modbus | Uni-TE | Third party protocols |
| Product brand | Schneider Electric Modicon | Mitsubishi Melsec | Omron Sysmac | Rockwell Automation Allen-Bradley | Siemens Simatic |
| Fixing mode | By 4 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201 | By 4 screws conforming to IEC 61131-2 | By 4 screws conforming to IEC 61000-6-2 |
| Enclosure material | PC |
| Front material | Aluminium |
| Marking | CE |
| Cut-out dimensions | 255 x 185 mm panel cut dimension |
| Height | 203 mm |
| Width | 273 mm |
| Depth | 47 mm |
| Net weight | 1.3 kg |
| Immunity to microbreaks | 10 ms |
| Standards | IEC 61000-6-4 | IEC 61000-6-2 | IEC 61131-2 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 |
| Product certifications | CSA | CE | UKCA |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 | IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use) | NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2 | 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) | Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 | Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.500 cm |
| Package 1 Width | 28.000 cm |
| Package 1 Length | 34.500 cm |
| Package 1 Weight | 1.825 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.300 kg |
