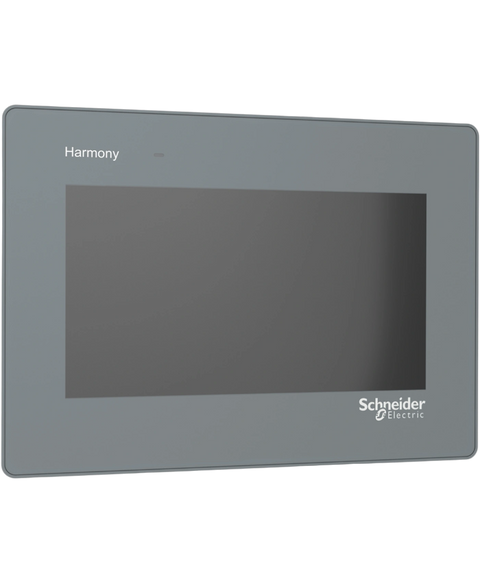

Schneider Electric HMIET6400
7 wide screen touch panel, 16M colors, COM x 2, ETH x 1, USB host , device, RTC, DC24V
This Schneider Electric HMIET6400 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805527052.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Easy Harmony ET6 |
| Product or component type | Touch panel screen |
| Software package | Vijeo Designer Basic |
| Processor name | ARM Cortex-A8 |
| Display size | 7 inch |
| Display type | Colour TFT LCD |
| Display colour | 16 million colours |
| Display resolution | 800 x 480 pixels WVGA |
| Touch panel | Single touch analogue resistive |
| Brightness | 16 levels |
| Character font | ASCII | ASCII (European characters) | Chinese (simplified Chinese) | Japanese (ANK, Kanji) | Katakana | Korean | Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Inrush current | 30 A |
| Local signalling | Status LED green, steady for operating | Status LED orange, steady for software starting up | Status LED red, steady for power supply (ON) | Status LED, off for power supply (OFF) |
| Power consumption in W | 9 W |
| Number of pages | 200 application pages |
| Port Ethernet | 10/100BASE |
| Memory description | Device memory 256 MB | User data memory 256 MB | Backup memory 128 kB |
| Integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin male - RS232C (rate: 2400...115200 bps)bottom | 1 COM2 serial link - 1 SUB-D 9-pin male - RS422/RS485 (rate: 2400...115200 bps)bottom | COM2 serial link (rate: 2400...187500 bps)bottom | 1 Ethernetbottom | 1 USB 2.0 type Aback | 1 USB 2.0 type micro Bback |
| Supply | External supply |
| Realtime clock | Built-in 0...50 °C | Built-in 10...90 % RH |
| Downloadable protocols | Modbus | Uni-TE | Third party protocols |
| Product brand | Schneider Electric |
| Fixing mode | By 4 screws, mounting on 1.6...5 mm thick panel |
| Cut-out dimensions | 190 x 135 mm panel cut dimension |
| Height | 151 mm |
| Width | 206 mm |
| Depth | 45 mm |
| Net weight | 0.61 kg |
| Immunity to microbreaks | 5 ms |
| Enclosure material | PC |
| Front material | Plastic |
| Standards | IEC 61000-6-4 | IEC 61000-6-2 | IEC 61131-2 | UL 61010-2-201 | CSA C22.2 No 61010-1-201 |
| Product certifications | CE | UL | EAC (pending) | KC-Mark (pending) |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 | IP65 (front panel) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2 | 9.8 m/s² (f = 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) | Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 | Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.500 cm |
| Package 1 Width | 19.000 cm |
| Package 1 Length | 28.200 cm |
| Package 1 Weight | 879.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.120 kg |
