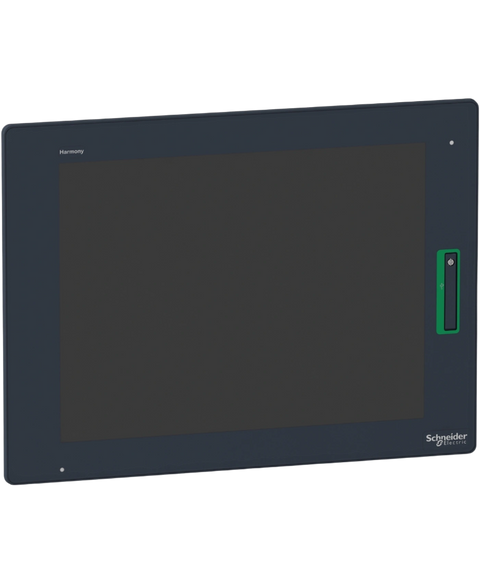

Schneider Electric HMIDT732
Touch Screen, Flat, Magelis GTU Series, TFT LCD Color, 1024 x 768 Pixels, 15 , 24 Vdc.
This Schneider Electric HMIDT732 is supplied brand new by PartLogic for machine control, process visibility, operator input, production monitoring and industrial automation applications. It forms part of our Industrial automation > Hmi > Touch panels range and is referenced internally as PartLogic SKU PL26805669592.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Harmony GTU |
| Terminal type | Touchscreen display |
| Product or component type | Flat screen |
| [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V |
| Power consumption in W | 22 W |
| Inrush current | 30 A |
| Integrated connection type | USB 2.0 type A | USB 2.0 type mini B |
| Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 1024 x 768 |
| Display size | 15 inch |
| Aspect ratio | 4:3 |
| Display type | Colour TFT LCD |
| Display resolution | 1024 x 768 pixels XGA |
| Display colour | 16 million colours |
| Backlight lifespan | 50000 hours |
| Touch panel | Multi touch analogue resistive |
| Function available | Brightness sensor |
| Type of cooling | Natural convection |
| Type of installation | Indoor installation |
| Cut-out dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm |
| Width | 397 mm |
| Height | 296 mm |
| Depth | 67 mm |
| Net weight | 4.5 kg |
| IP degree of protection | Front panel: IP66 | Front panel: IP67 |
| NEMA degree of protection | NEMA 4X front panel |
| Standards | UL 508 | ANSI/ISA 12-12-01 | Class I division 2 CSA C22.2 No 213 | CSA C22.2 No 142 | IEC 61132-2 |
| Product certifications | CULus | RCM | KC | CE | UKCA | UKEX |
| Ambient air temperature for operation | 0…60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| Vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2 | 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.000 cm |
| Package 1 Width | 38.000 cm |
| Package 1 Length | 52.600 cm |
| Package 1 Weight | 6.358 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 106.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 119.500 kg |
