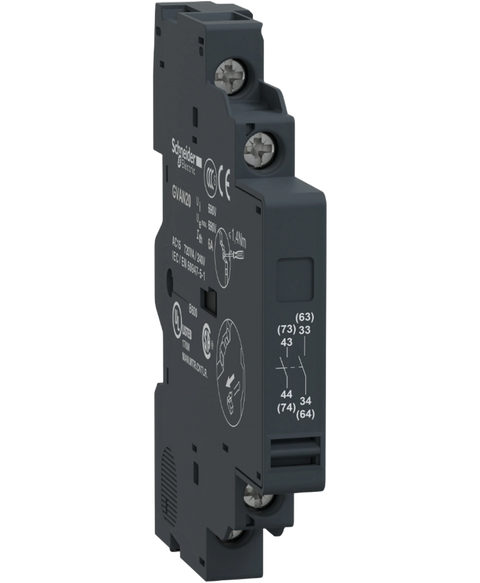

Schneider Electric GVAN20
TeSys GV2 & GV3 - auxiliary contact block - 2 NO
This Schneider Electric GVAN20 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Accessories range and is referenced internally as PartLogic SKU PL26805678242.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys | TeSys Deca |
| Device short name | GVAN |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME | GV3P | GV2RT | GV2LE | GV2L | GV3L | GV2P |
| Mounting location | Left side |
| Pole contact composition | 2 NO |
| [Ui] rated insulation voltage | 600 V conforming to UL 508 | 690 V conforming to IEC 60947-1 | 600 V conforming to CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC | 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker | GG fuse 10 A |
| Rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles | 414 VA at 690 V AC-15 - electrical durability: 100000 cycles | 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles | 500 VA at 500 V AC-15 - electrical durability: 100000 cycles | 650 VA at 440 V AC-15 - electrical durability: 100000 cycles | 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles | 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 100000 cycles | 140 W at 110 V DC-13 - electrical durability: 100000 cycles | 140 W at 24 V DC-13 - electrical durability: 100000 cycles | 180 W at 60 V DC-13 - electrical durability: 100000 cycles | 240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Net weight | 0.05 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
| Product certifications | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.5 cm |
| Package 1 Width | 13 cm |
| Package 1 Length | 15 cm |
| Package 1 Weight | 41 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.22 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 49.04 kg |
