Schneider Electric GVAE1

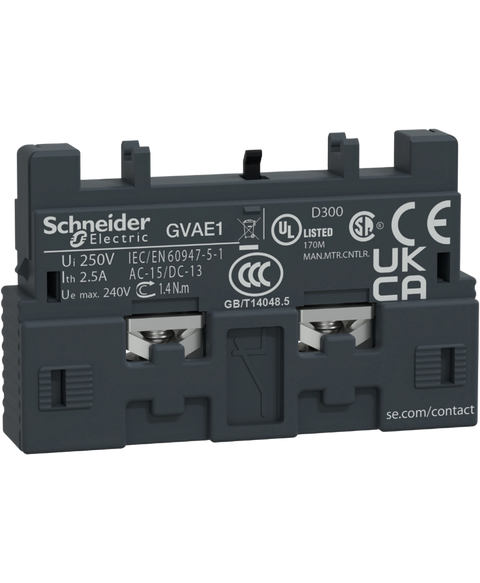

TeSys GV2 & GV3 - auxiliary contact - 1 NO,NC
This Schneider Electric GVAE1 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Accessories range and is referenced internally as PartLogic SKU PL26801467402.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys | TeSys Deca |
| Device short name | GVAE |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2P | GV2L | GV2ME | GV2LE | GV2RT | GV2LM | GV3P | GV3L |
| Mounting location | Front side |
| Pole contact composition | 1 NO/NC |
| Quantity per set | Set of 10 |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 | 300 V conforming to CSA C22.2 No 14 | 250 V conforming to IEC 60947-1 |
| [Ue] rated operational voltage | 24...240 V AC | 24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A | GB2CB06 circuit breaker 10 A maximum |
| Rated operational power in VA | 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles | 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles | 48 VA at 24 V AC-15 - electrical durability: 100000 cycles | 60 VA at 48 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W | 15 W at 48 V DC-13 - electrical durability: 100000 cycles | 24 W at 24 V DC-13 - electrical durability: 100000 cycles | 9 W at 60 V DC-13 - electrical durability: 100000 cycles |
| Tightening torque | 1.7 N.m screw clamp terminals |
| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
| Net weight | 0.02 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
| Standards | EN/IEC 60947-5-1 | UL 60947-4-1 | CSA C22.2 No 60947-4-1 | IEC/EN 60335-1:Clause 30.2 | IEC/EN 60335-2-40:Annex JJ |
| Product certifications | CB Scheme | CE | UKCA | CCC | cULus | EAC |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1 cm |
| Package 1 Width | 6 cm |
| Package 1 Length | 7 cm |
| Package 1 Weight | 12 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3 cm |
| Package 2 Width | 20.2 cm |
| Package 2 Length | 26 cm |
| Package 2 Weight | 130 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 260 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 3.821 kg |
