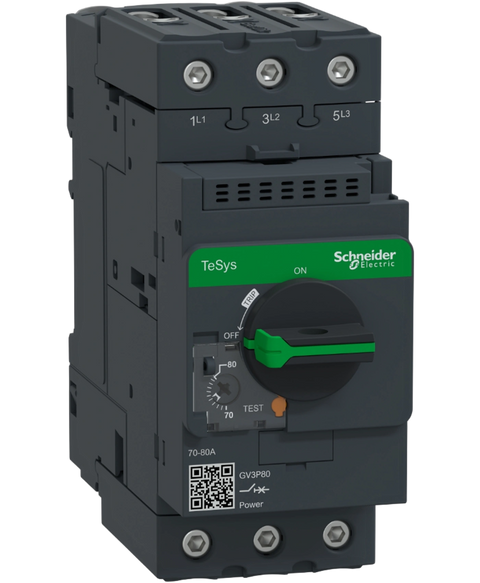

Schneider Electric GV3P80
Motor circuit breaker, TeSys GV3, 3P, 70-80 A, thermal magnetic, EverLink terminals
This Schneider Electric GV3P80 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor circuit breakers range and is referenced internally as PartLogic SKU PL26805418040.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys Deca |
| Product name | TeSys GV3 |
| Product or component type | Motor circuit breaker |
| Device short name | GV3P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | Category A conforming to IEC 60947-2 | AC-3 conforming to IEC 60947-4-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Motor power kW | 45 kW at 400/415 V AC 50/60 Hz maximum peak current 750 A | 45 kW at 500 V AC 50/60 Hz maximum peak current 750 A | 55 kW at 690 V AC 50/60 Hz maximum peak current 750 A |
| Breaking capacity | 65 kA Icu at 230/240 V AC 50/60 Hz | 50 kA Icu at 400/415 V AC 50/60 Hz | 50 kA Icu at 440 V AC 50/60 Hz | 12 kA Icu at 500 V AC 50/60 Hz | 6 kA Icu at 690 V AC 50/60 Hz |
| [Ics] rated service short-circuit breaking capacity | 100 % at 230/240 V AC 50/60 Hz | 60 % at 400/415 V AC 50/60 Hz | 60 % at 440 V AC 50/60 Hz | 50 % at 500 V AC 50/60 Hz | 50 % at 690 V AC 50/60 Hz |
| Control type | Rotary handle |
| [In] rated current | 80 A |
| Thermal protection adjustment range | 70…80 A conforming to IEC 60947-2 |
| Magnetic tripping current | 1120 A |
| [Ith] conventional free air thermal current | 80 A conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability for isolation | Yes conforming to IEC 60947-1 |
| Power dissipation per pole | 8 W |
| Mechanical durability | 50000 cycles |
| Electrical durability | 20000 cycles for AC-3 at 415 V In |
| Rated duty | Uninterrupted conforming to IEC 60947-4-1 |
| Tightening torque | 5 N.m - on screw clamp terminal |
| Fixing mode | 35 mm symmetrical DIN rail: clipped | Panel: screwed (with 3 x M4 screws) |
| Mounting position | Horizontal | Vertical |
| Width | 55 mm |
| Height | 132 mm |
| Depth | 136 mm |
| Net weight | 0.96 kg |
| Colour | Dark grey |
| Standards | EN/IEC 60947-2 | EN/IEC 60947-4-1 | IEC/EN 60335-1:Clause 30.2 | IEC/EN 60335-2-40:Annex JJ |
| Product certifications | CCC | CSA | EAC | ATEX | LROS (Lloyds register of shipping) | BV | ABS | DNV-GL | UKCA |
| IK degree of protection | IK09 enclosure |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for operation | -20…60 °C |
| Mechanical robustness | Shocks: 5 Gn for 11 ms contactor open | Shocks: 30 Gn for 11 ms contactor closed | Vibrations: 4 Gn, 5...300 Hz |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 14.500 cm |
| Package 1 Length | 16.000 cm |
| Package 1 Weight | 1.020 kg |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 135.500 kg |
