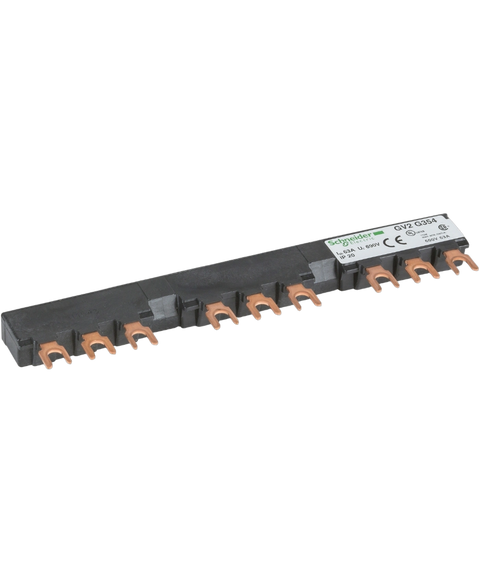

Schneider Electric GV2G354
Linergy FT - Comb busbar - 63 A - 3 tap-offs - 54 mm pitch
This Schneider Electric GV2G354 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor circuit breakers range and is referenced internally as PartLogic SKU PL26805538214.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Linergy |
| Product name | FT |
| Device short name | GV2G |
| Product or component type | Comb busbar |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys Deca | TeSys GV2 | TeSys K | TeSys U |
| Number of tap-offs | 3 |
| [Ith] conventional free air thermal current | 63 A |
| Connection pitch | 54 mm |
| Fixing mode | Terminals: |
| [Ui] rated insulation voltage | 690 V |
| Width | 152 mm |
| Net weight | 0.06 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 3.100 cm |
| Package 1 Length | 15.100 cm |
| Package 1 Weight | 66.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.710 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 160.720 kg |
