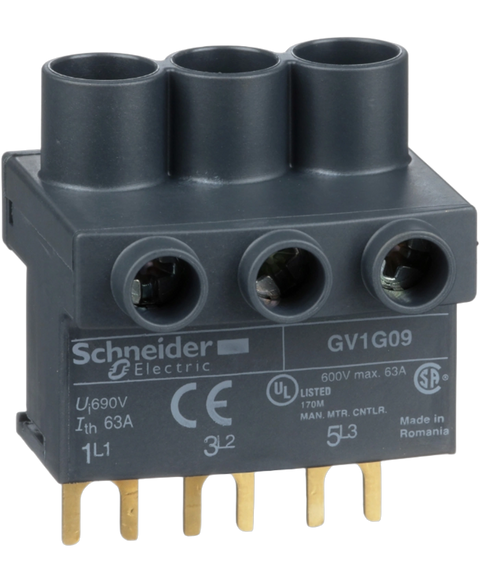

Schneider Electric GV1-G09
Schneider GV1G09 terminal block, 3P, top feed, 63A.
This Schneider Electric GV1-G09 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Motor circuit breakers range and is referenced internally as PartLogic SKU PL26897671065.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | Linergy |
| Product name | FT |
| Device short name | GV1G |
| Product or component type | Terminal block |
| Accessory / separate part category | Connection accessory |
| Poles description | 3P |
| Range compatibility | TeSys GV2 | TeSys Deca | TeSys U | TeSys LS1 |
| [Ie] rated operational current | 63 A |
| Mounting location | Top |
| IP degree of protection | IP20 conforming to IEC 60529 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| Connections - terminals | Screw clamp terminals 1 solid AWG 4 | Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible with cable end | Screw clamp terminals 1 cable(s) 1.5…16 mm² flexible without cable end | Screw clamp terminals 1 cable(s) 1.5…25 mm² solid | Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible with cable end | Screw clamp terminals 2 cable(s) 1.5…6 mm² solid | Screw clamp terminals 2 cable(s) 1.5…4 mm² flexible without cable end | Screw clamp terminals 1 flexible AWG 4 |
| Tightening torque | 1.7 N.m - on screw clamp terminals | 2.2 N.m - on connector |
| Net weight | 0.04 kg |
| Product certifications | CE | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 7.000 cm |
| Package 1 Weight | 49.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.706 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1120 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 69.540 kg |
