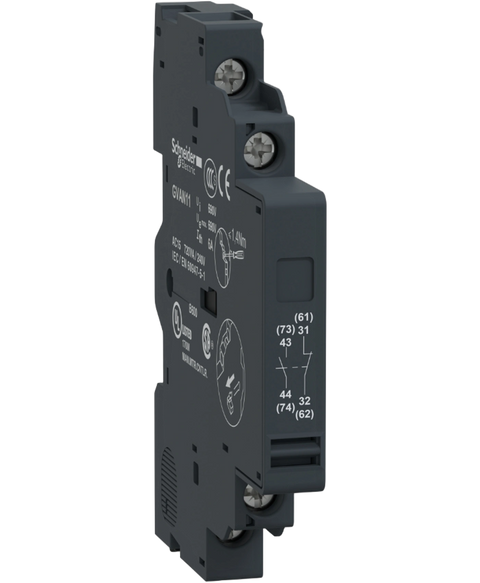

Schneider Electric GV-AN11
Schneider Electric GVAN11 auxiliary contact block, 1NO,1NC.
This Schneider Electric GV-AN11 is supplied brand new by PartLogic for switching, motor protection, starting, control panel builds, machinery maintenance and industrial electrical applications. It forms part of our Industrial automation > Motor control > Accessories range and is referenced internally as PartLogic SKU PL26801389897.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys | TeSys Deca |
| Device short name | GVAN |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME | GV2RT | GV2L | GV3P | GV3L | GV2LE | GV2P |
| Mounting location | Left side |
| Pole contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | 600 V conforming to UL 508 | 690 V conforming to IEC 60947-1 | 600 V conforming to CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC | 24...240 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GB2CB... circuit breaker | GG fuse 10 A |
| Rated operational power in VA | 300 VA at 48 V AC-15 - electrical durability: 100000 cycles | 414 VA at 690 V AC-15 - electrical durability: 100000 cycles | 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles | 500 VA at 500 V AC-15 - electrical durability: 100000 cycles | 650 VA at 440 V AC-15 - electrical durability: 100000 cycles | 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles | 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W | 120 W at 240 V DC-13 - electrical durability: 100000 cycles | 140 W at 110 V DC-13 - electrical durability: 100000 cycles | 140 W at 24 V DC-13 - electrical durability: 100000 cycles | 180 W at 60 V DC-13 - electrical durability: 100000 cycles | 240 W at 48 V DC-13 - electrical durability: 100000 cycles |
| Height | 89 mm |
| Width | 9.3 mm |
| Depth | 66 mm |
| Net weight | 0.05 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
| Product certifications | UKCA |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.5 cm |
| Package 1 Width | 13 cm |
| Package 1 Length | 15 cm |
| Package 1 Weight | 42 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 25 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.245 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 49.84 kg |
