Schneider Electric GB2CD07

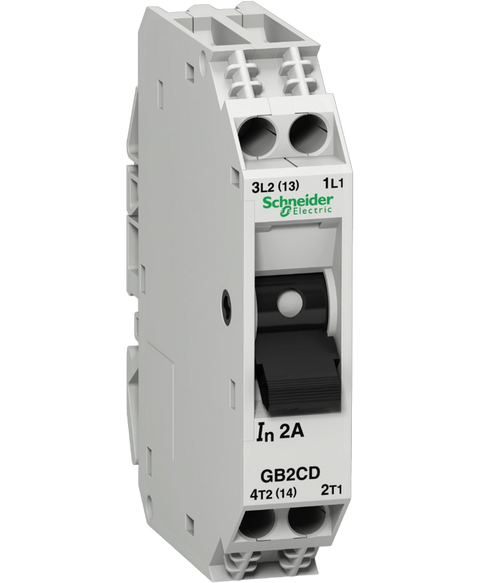

Thermal magnetic circuit breaker, TeSys GB2, 1P+N, 2 A, Icu 15 kA@240 V
This Schneider Electric GB2CD07 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Circuit breakers range and is referenced internally as PartLogic SKU PL26805521442.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys GB2 |
| Device short name | GB2 |
| Product or component type | Circuit breaker |
| Device application | Control |
| Poles description | 1P + N |
| Network type | AC/DC |
| Utilisation category | Category A conforming to IEC 60947-2 | DC-12 conforming to IEC 60947-5-1 | DC-13 conforming to IEC 60947-5-1 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Breaking capacity | 10 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 25 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping current | 26 A |
| Mounting mode | By clips |
| Mounting support | Plate | Rail |
| Mounting position | Vertical | Horizontal |
| Control type | Toggle |
| [In] rated current | 2 A |
| [Ue] rated operational voltage | 250 V AC 50/60 Hz conforming to IEC 60947-2 | 277 V AC 60 Hz conforming to CSA C22.2 No 235 | 277 V AC 60 Hz conforming to UL 1077 | 48 V DC |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-2 |
| Power dissipation per pole | 2 W |
| Mechanical durability | 8000 cycles |
| Electrical durability | 8000 cycles |
| Connections - terminals | Connector 1 cable(s) 0.75…6 mm²solid without cable end | Connector 2 cable(s) 0.75…4 mm²solid without cable end | Connector 1 cable(s) 0.75…4 mm²flexible with cable end | Connector 2 cable(s) 0.75…2.5 mm²flexible with cable end |
| Tightening torque | 1.2 N.m on connector |
| Mechanical robustness | Shocks: 22 Gn for 20 ms conforming to IEC 60068-2-27 | Vibrations: 5 Gn, 5...110 Hz conforming to IEC 60068-2-6 |
| Quantity per set | Set of 6 |
| 9 mm pitches | 2 |
| Height | 74 mm |
| Width | 15 mm |
| Depth | 67 mm |
| Net weight | 0.07 kg |
| Standards | EN/IEC 60947-1 | EN/IEC 60947-2 | CSA C22.2 No 235 | UL 1077 |
| Product certifications | UL | CSA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 7.400 cm |
| Package 1 Weight | 62.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 7.800 cm |
| Package 2 Length | 9.600 cm |
| Package 2 Weight | 388.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 72 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.945 kg |
