Schneider Electric DF103

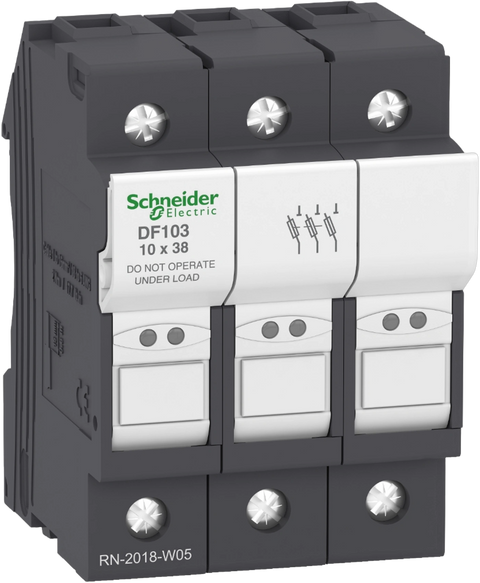

Fuse carrier, TeSys DF, 3P, 32A, 690VAC, fuse size 10x38mm
This Schneider Electric DF103 is supplied brand new by PartLogic for control panels, machine wiring, power distribution, industrial maintenance and replacement applications. It forms part of our Industrial automation > Electrical distribution > Fuse holders range and is referenced internally as PartLogic SKU PL26926411619.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys DF |
| Product or component type | Fuse carrier |
| Device short name | DF10 |
| Product compatibility | DF2CA fuse cartridge | DF2CN fuse cartridge |
| Poles description | 3P |
| Fuse size | 10 x 38 mm |
| Fuse type | 0…32 A, gG | 0…32 A, aM |
| Control type | Toggle padlockable |
| Utilisation category | AC-20B conforming to IEC 60947-3 | DC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC | 690 V DC |
| [Ie] rated operational current | 32 A at 400 V AC |
| [Ith] conventional free air thermal current | 32 A 20 °C |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Short-circuit withstand | 120 kA 400 V conforming to IEC 60947-3 | 120 kA 500 V conforming to IEC 60947-3 |
| Power dissipation in W | 3 W maximum power dissipation by fuse |
| Standards | EN/IEC 60947-3 | EN/IEC 60269-2 | UL 4248-1 | CSA C22.2 No 4248-1 | EN 45545-2: R22 HL2 |
| Product certifications | IEC | UL recognized | CSA | CCC | EAC | DNV-GL |
| Mounting support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical (tolerance: +/- 23°) |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…16 mm²rigid | Screw clamp terminals 2 cable(s) 1…6 mm²rigid | Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without | Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without |
| Tightening torque | 2.2 N.m - with screwdriver PZ2 | 2.2 N.m - with screwdriver flat Ø 5.5 mm |
| Height | 79.5 mm |
| Width | 52.5 mm |
| Depth | 61 mm |
| Net weight | 0.126 kg |
| Quantity per set | Set of 4 |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C with derating above 20°C |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code | DF10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.300 cm |
| Package 1 Width | 6.200 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 133.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 6.800 cm |
| Package 2 Width | 8.500 cm |
| Package 2 Length | 22.200 cm |
| Package 2 Weight | 570.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 64 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.504 kg |
