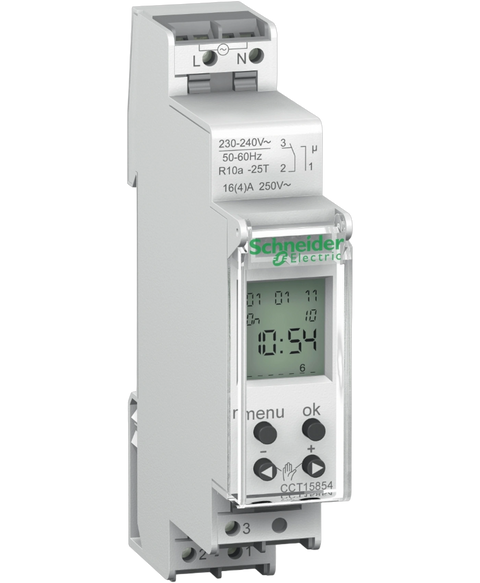

Schneider Electric CCT15854
Acti9 - IHP - 1C digital time switch - 24 hours + 7 days
This Schneider Electric CCT15854 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Control relays range and is referenced internally as PartLogic SKU PL26805551948.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| range of product | Acti9 |
| Product name | Acti9 IHP |
| Device short name | IHP |
| Product or component type | Programmable digital time switch |
| Device application | Building |
| Battery type | Lithium |
| Number of channels | 1 |
| Available equipment | Programming kit | Memory key |
| User language | Portuguese | English | French | Italian | German | Spanish |
| Colour tint | White (RAL 9003) |
| Maximum switching current | 16 A - 250 V AC pf = 1 | 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50/60 Hz |
| Accuracy | +/- 0.5 s/day 25 °C |
| Cycle duration | 24 hours + 7 days |
| Maximum number of switchings | 56 |
| Minimum interval duration | 1 min |
| Function available | Operating hours counter | Automatic winter/summer time changeover |
| Display type | LCD |
| Battery life | 10 year(s) |
| Backup time | 10 years time and program saving |
| Type of setting | PIN code | Absence for holidays function |
| Connections - terminals | 2 x 0.5…2.5 mm² screwless terminals |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Width | 18 mm |
| Height | 90 mm |
| Depth | 66 mm |
| Net weight | 0.09 kg |
| Function | None |
| Absence for holidays | Yes |
| Time changeover | Automatic |
| Updated by | None |
| Compatibility code | IHP |
| Market segment | Residential | Small commercial |
| Ambient air temperature for operation | -25…55 °C |
| IP degree of protection | IP20 B |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.3 cm |
| Package 1 Width | 8.3 cm |
| Package 1 Length | 10.6 cm |
| Package 1 Weight | 125 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 86 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.366 kg |
