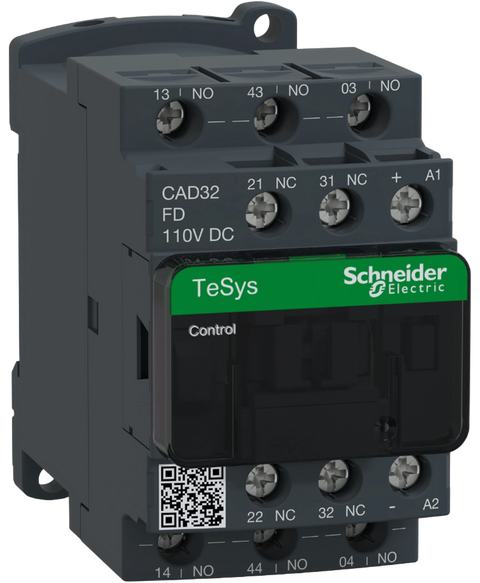

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric CAD32FD
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V DC standard coil
This Schneider Electric CAD32FD is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26899395894.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$205.53
(inc. GST)
In Stock
| Range | TeSys | TeSys Deca |
| Product name | TeSys CAD |
| Product or component type | Control relay |
| Device short name | CAD |
| Contactor application | Control circuit |
| Utilisation category | AC-15 | DC-13 | AC-14 |
| Pole contact composition | 3 NO + 2 NC |
| [Ue] rated operational voltage | <= 690 V AC 25...400 Hz |
| Control circuit type | DC standard |
| [Uc] control circuit voltage | 110 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 | 250 A DC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A - 1 s | 120 A - 500 ms | 140 A - 100 ms |
| Associated fuse rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V UL certified | 600 V CSA certified | 690 V conforming to IEC 60947-5-1 |
| Mounting support | Rail | Plate |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end | Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end | Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end | Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end |
| Tightening torque | 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 | 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm | 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| Control circuit voltage limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC | 0.7...1.25 Uc (-40…60 °C):operational DC | 1...1.25 Uc (60…70 °C):operational DC |
| Operating time | 53...72 ms coil energisation and NO closing | 16...24 ms coil de-energisation and NO opening | 47...63 ms coil energisation and NC opening | 15...25 ms coil de-energisation and NC closing |
| Mechanical durability | 30 Mcycles |
| Maximum operating rate | 180 cyc/mn |
| Time constant | 28 ms |
| Inrush power in W | 5.4 W (at 20 °C) |
| Hold-in power consumption in W | 5.4 W at 20 °C |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 mA |
| Non-overlap time | 1.5 ms on energisation between NC and NO contact | 1.5 ms on de-energisation between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Mechanical robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 | Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 | Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 | Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Height | 77 mm |
| Width | 45 mm |
| Depth | 93 mm |
| Net weight | 0.58 kg |
| Standards | EN/IEC 60947-5-1 | GB/T 14048.5 | UL 60947-5-1 | CSA C22.2 No 60947-5-1 | JIS C8201-5-1 |
| Product certifications | CB | CCC | UL | CSA | EAC | CE | UKCA |
| IP degree of protection | IP2X front face conforming to VDE 0106 |
| Protective treatment | TH conforming to IEC 60068 |
| Ambient air temperature for operation | -40…60 °C | 60…70 °C with derating |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 9.200 cm |
| Package 1 Length | 11.200 cm |
| Package 1 Weight | 513.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.255 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 77.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 132.100 kg |
