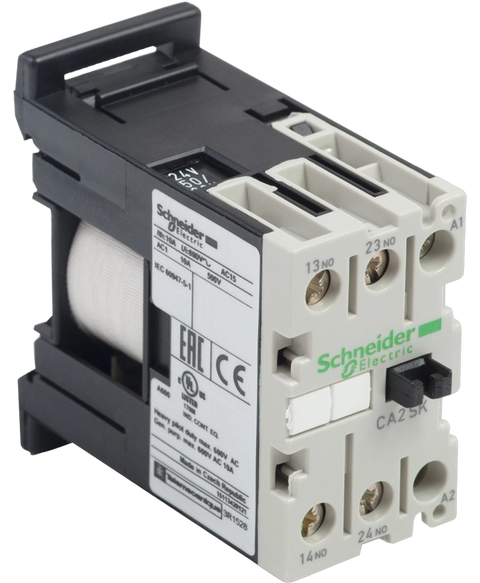

TeSys SK control relay - 2 NO - <= 690 V - 48 V AC coil
This Schneider Electric CA2SK20E7 is supplied brand new by PartLogic for control circuits, automation panels, signal switching, machine safety and industrial maintenance applications. It forms part of our Industrial automation > Relays > Electromechanical relays range and is referenced internally as PartLogic SKU PL26897177109.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range | TeSys |
| Product name | TeSys CASK |
| Product or component type | Control relay |
| Device short name | CA2SK |
| Contactor application | Control circuit |
| Utilisation category | DC-13 | AC-15 |
| Pole contact composition | 2 NO |
| [Ue] rated operational voltage | <= 690 V <= 400 Hz |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 10 A (at 55 °C) |
| Associated fuse rating | 10 A gL conforming to VDE 0660 | 10 A gL conforming to IEC 60947 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947 | 690 V conforming to VDE 0110 group C | 690 V conforming to BS 5424 | 690 V conforming to UL 508 | 690 V conforming to CSA C22.2 No 14 |
| Mounting support | Plate | Rail |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…6 mm²solid | Screw clamp terminals 2 cable(s) 1.5…4 mm²solid | Screw clamp terminals 1 cable(s) 0.5…6 mm²flexible without cable end | Screw clamp terminals 1 cable(s) 0.35…6 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 0.35…1.5 mm²flexible with cable end | Screw clamp terminals 2 cable(s) 0.35…2.5 mm²flexible without cable end |
| Tightening torque | 0.8 N.m - on screw clamp terminals pozidriv No 1 screw head |
| Control circuit voltage limits | Drop-out: 0.2...0.75 Uc (at <50 °C) | Operational: 0.85...1.1 Uc (at <50 °C) |
| Operating time | 6...8 ms coil de-energisation and NO opening | 7...14 ms coil energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 1200 cyc/h |
| Inrush power in VA | 16 VA (at 20 °C) |
| Hold-in power consumption in VA | 4.2 VA (at 20 °C) |
| Heat dissipation | 1.4 W |
| Height | 56 mm |
| Width | 27 mm |
| Depth | 55.5 mm |
| Net weight | 0.132 kg |
| Standards | EN/IEC 60947-5-1 | UL 60947-5-1 | CSA C22.2 No 60947-5-1 |
| Product certifications | CB Scheme | cULus | EAC | CE | UKCA |
| IP degree of protection | IP2X |
| Protective treatment | TC conforming to IEC 60068 |
| Ambient air temperature for operation | -20…50 °C |
| Ambient air temperature for storage | -50…70 °C |
| Operating altitude | 2000 m without derating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.800 cm |
| Package 1 Width | 6.800 cm |
| Package 1 Length | 3.200 cm |
| Package 1 Weight | 120.000 g |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 15.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.986 kg |
