Schneider Electric BMXXBP1200

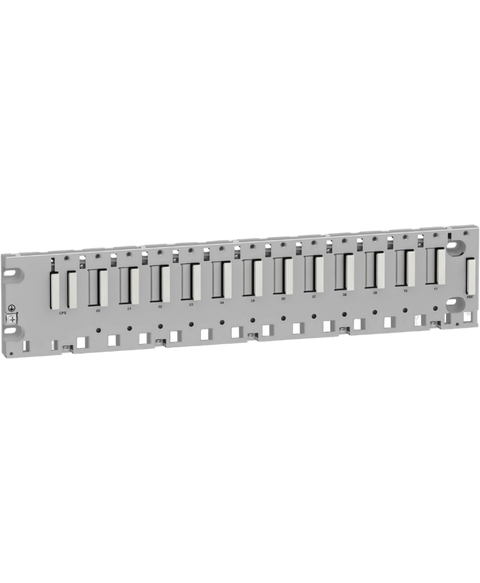

The Schneider Electric BMXXBP1200 is a backplane that features 12 slots. It measures 103.7 mm in height, 503.2 mm in width, and 19 mm in depth, while having a total weight of 1.27 kg. This backplane is compatible with various I,O modules and application modules.
This Schneider Electric BMXXBP1200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26805605680.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Backplane |
| Number of slots | 12 bus X |
| Product compatibility | BMXP34 processor | BMXCPS power supply | I/O module | Specific application module |
| Power consumption in W | 0.17 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws, mounting on panel | By 4 M4/M5/M6 screws, mounting on mounting plate |
| Height | 103.7 mm |
| Width | 503.2 mm |
| Depth | 19 mm |
| Net weight | 1.27 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | UKCA | Merchant Navy |
| Standards | EN/IEC 61131-2 | EN/IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 16.000 cm |
| Package 1 Length | 56.800 cm |
| Package 1 Weight | 1.317 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 11.420 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 52.680 kg |
