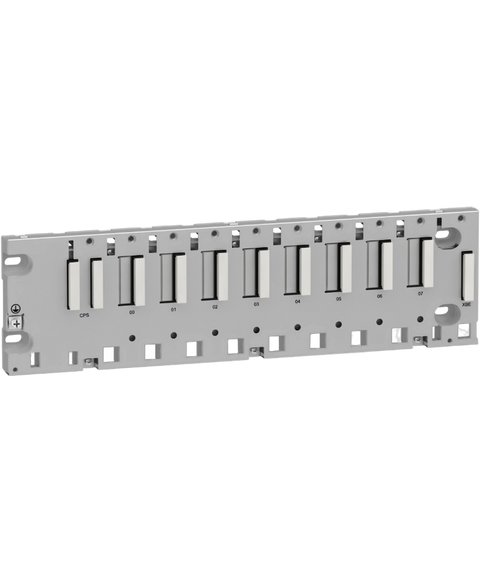

Schneider Electric BMXXBP0800
The BMXXBP0800 rack from Schneider Electric is structured to accommodate 8 slots, specifically designed for use with Modicon M340 I,O modules. This unit operates on a 24V DC input voltage and is crafted from metal for durability.
This Schneider Electric BMXXBP0800 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks range and is referenced internally as PartLogic SKU PL26801460976.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon X80 |
| Product or component type | Backplane |
| Number of slots | 8 bus X |
| Product compatibility | BMXP34 processor | BMXCPS power supply | I/O module | Specific application module |
| Power consumption in W | 2.21 W |
| Electrical connection | 1 connector (XBE) expansion module |
| Fixing mode | By 4 M4/M5/M6 screws, mounting on panel | By 4 M4/M5/M6 screws, mounting on mounting plate | By clips, mounting on 35 mm symmetrical DIN rail |
| Height | 103.7 mm |
| Width | 372.8 mm |
| Depth | 19 mm |
| Net weight | 0.95 kg |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE | UL | CSA | RCM | EAC | UKCA | Merchant Navy |
| Standards | EN/IEC 61131-2 | EN/IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | EN/IEC 61000-6-5, interface type 1 and type 2 | EN/IEC 61850-3, location G |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.600 cm |
| Package 1 Width | 15.300 cm |
| Package 1 Length | 45.500 cm |
| Package 1 Weight | 996.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 9.783 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 51.132 kg |
