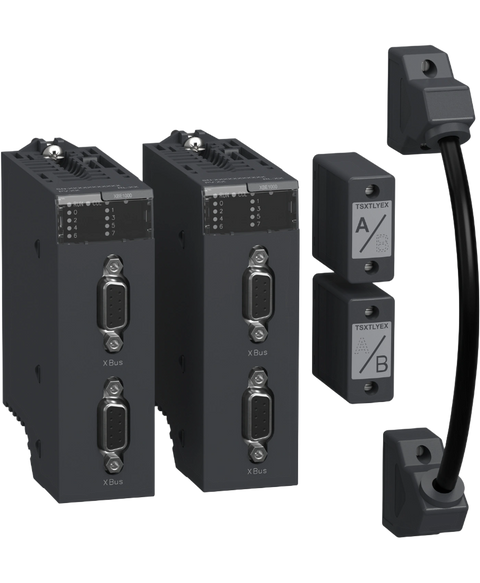

Schneider Electric BMXXBE2005
The BMXXBE2005 is a backplane extension cable from Schneider Electric's Modicon series, specifically designed for compatibility with the BMXXBE1000 model. This extension cable includes a line terminator and adheres to multiple directives for safety and reliability.
This Schneider Electric BMXXBE2005 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Racks > Bus extender range and is referenced internally as PartLogic SKU PL26805595443.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M340 automation platform |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part type | Backplane |
| Accessory / separate part designation | M340 backplane extender kit |
| Product compatibility | BMXXBE1000 |
| Accessory / separate part destination | M340 backplane |
| Kit composition | Cable and line terminator |
| Directives | 2014/35/EU - low voltage directive | 2014/30/EU - electromagnetic compatibility | 2014/34/EU - ATEX directive |
| Product certifications | CE | UL | CSA | RCM | EAC | Merchant Navy | ATEX zone 2/22 | IECEx zone 2/22 |
| Standards | IEC 61131-2 | IEC 61010-2-201 | UL 61010-2-201 | CSA C22.2 No 61010-2-201 | IACS E10 | IEC 61000-6-5, interface type 1 and type 2 | IEC 61850-3, location G | IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.200 cm |
| Package 1 Width | 20.300 cm |
| Package 1 Length | 22.200 cm |
| Package 1 Weight | 634.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.010 kg |
